  4. 系列 XS1 INC

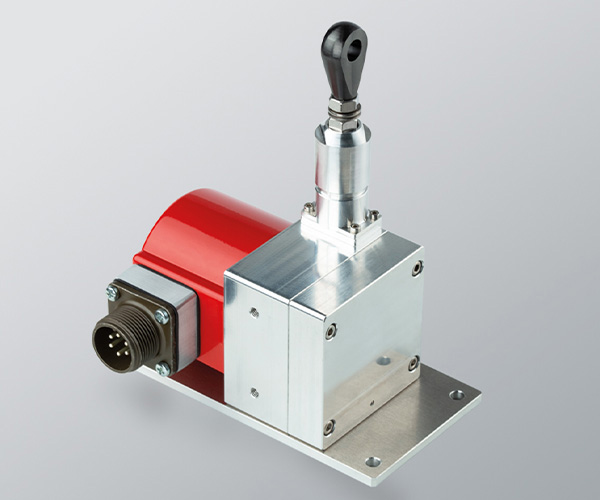

拉绳增量编码器

  • 增量输出
  • 分辨率 取决于 10 脉冲 为了 mm
  • 测量范围 取决于 1250 mm
  • 可伸缩线缆错位最多 20°
  • 防护等级 IP51 根据 DIN EN 60529

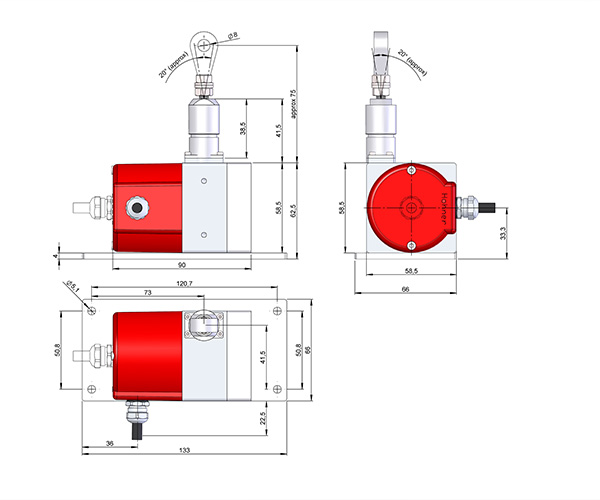

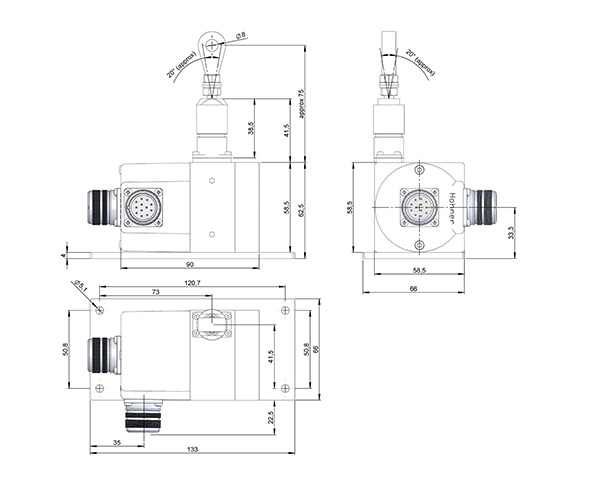

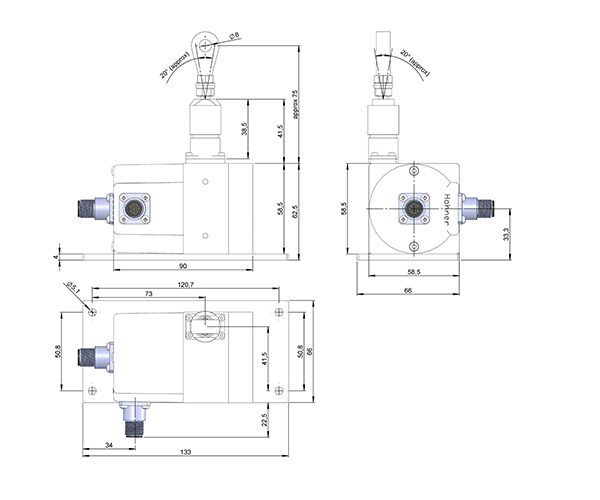

  • 通过线缆或工业连接器连接. 可订制线缆长度, 连接器支持 M12 或者 M23
专家答疑

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Name*

        E-mail*

        Phone

        Company

        Country

        Message

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        机械规格
        材料 端盖: 铝
        外壳: 铝
        轴: 不锈钢
        旅行 125 mm ±0,05 / 每圈
        线缆 (*) Ø 0,61 不锈钢 AISI316
        测量范围，最大（mm） 1250 mm.
        最大电缆延伸（mm） 1260 mm.
        最小电缆静张力 3 N
        最大电缆静张力 9 N
        最大伸展加速度 35 m/s2
        最大恢复加速度 10 m/s2
        最大速度 1 m/s
        防尘和防水等级符合 DIN EN 60529 IP51
        工作温度范围 -20ºC 至 +80ºC
        重量 0,9 kg.
        振动根据 DIN EN 60068-2-6 100 m/s (10Hz…2000Hz)
        冲击根据 DIN EN 60068-2-27 1000 m/s (6ms)

        (*) 如果需要其他类型的电缆也可以特殊订购。

        OUTPUT SIGNALS
        输出电路 NPN 集电极开路 Push-Pull 差分 RS422 (TTL兼容) RS422 (TTL兼容)
        电源供应 11…30 VDC 11…30 VDC 5 VDC ±5% 11…30 VDC
        输出电压 11…30 VDC 11…30 VDC 5 VDC 5 VDC
        电量消耗 40 mA 典型值: 45 mA
        最大限度:: 150 mA        		 典型值: 70 mA
        最大限度:: 150 mA        		 典型值: 80 mA
        最大限度:: 160 mA
        最大限度。 负载能力/通道 40 mA ±30 mA ±20 mA ±30 mA
        允许线缆长度 50 m (24 VDC) 100 m 1200 m 1200 m
        低电平信号 VOL < 0.4 VDC (24 VDC) VOL < 2.5 VDC VOL < 0.5 VDC VOL < 0.5 VDC
        低电平信号 VOH > 22 VDC (24 VDC) VOH > VCC – 3 VDC VOH > 2.5 VDC VOH > 2.5 VDC
        频率 100 kHz 200 kHz 300 kHz 300 kHz
        短路保护 非永久 有 有 有
        保护极性反转 有 有 无 有

        Accessories

        Pagu-flex

        Poly-flex

        Oldham-flex-clamp

        角架

        钟形耦合器

        Spring-flex

        防旋转系统

        Alu-flex

        测量轮

        Union

        Lami-flex

        Bellow-flex

        连接器

        Cross-flex

        法兰

        预装线缆

        SKU: XS1-INC-16-021250 Categories: , ,
