  4. 系列 XS1 ANA

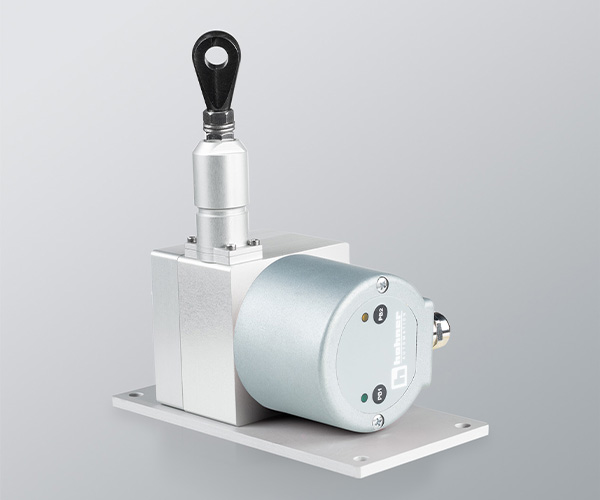

拉绳模拟量编码器

  • 模拟输出
  • 分辨率 取决于 16 位
  • 测量范围 可配置 取决于 1250 mm
  • 可伸缩缆绳错位最多 20°
  • 防护等级 IP51 根据 DIN EN 60529
  • 限位开关功能

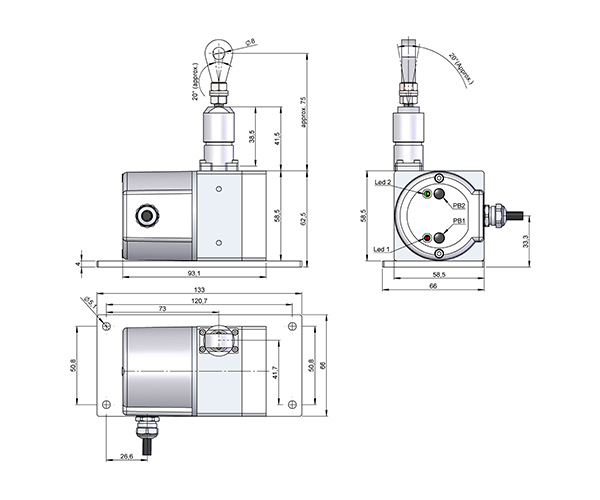

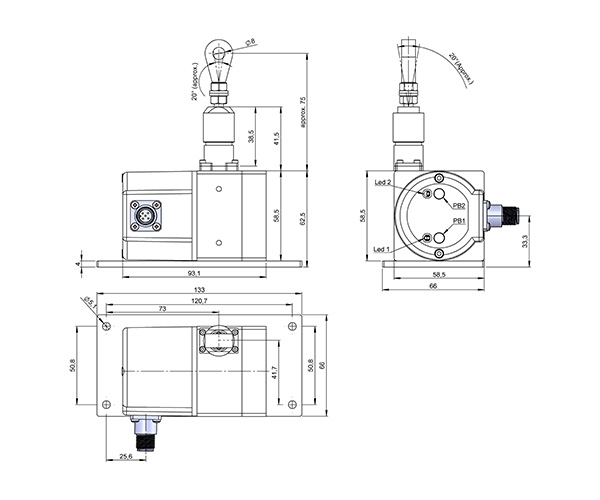

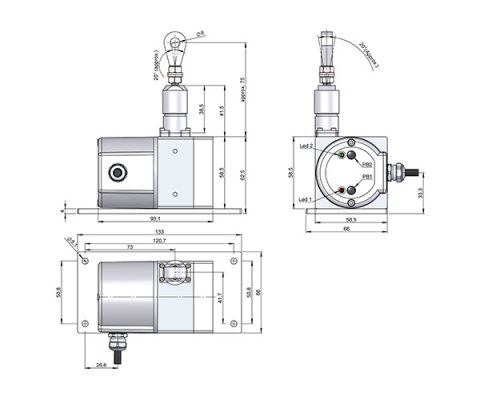

  • 通过线缆或工业连接器连接. 可订制线缆长度, 连接器支持 M12
专家答疑

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Name*

        E-mail*

        Phone

        Company

        Country

        Message

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        机械规格
        材料 端盖: 铝
        外壳: 铝
        轴: 不锈钢
        旅行 125 mm ±0,05 / 每圈
        线缆 (*) Ø 0,61 不锈钢 AISI316
        测量范围，最大（mm） 1250 mm.
        最大电缆延伸（mm） 1260 mm.
        最小电缆静张力 3 N
        最大电缆静张力 9 N
        最大伸展加速度 35 m/s2
        最大恢复加速度 10 m/s2
        最大速度 1 m/s
        防尘和防水等级符合 DIN EN 60529 IP51
        工作温度范围 -40ºC 至 +85ºC
        重量 0,9 kg.
        振动根据 DIN EN 60068-2-6 100 m/s (10Hz…2000Hz)
        冲击根据 DIN EN 60068-2-27 1000 m/s (6ms)

        (*) 如果需要其他类型的电缆也可以特殊订购。

        电气规格
        接口 模拟
        电子输出 0..20mA , 4..20mA, 0..5V, 0..10V
        电源供应 (VCC) 7-30V, 12-30V
        电量消耗 ≤ 100 mA
        分辨率 12 或者 16 位
        范围 取决于 1250 mm
        可配置参数 范围, 方向 或 预设
        频率 100 kHz
        短路保护 有
        保护极性反转 有
