系列 SMRS64S

  1. Home
  2. 单圈绝对值编码器
  3. Sin/Cos
  4. 系列 SMRS64S
3D

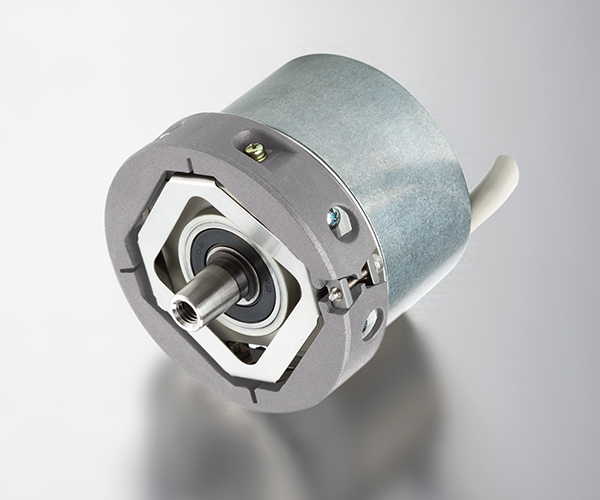

单圈绝对和增量圆锥轴编码器
- SIN/COS + SIN/COS

SIN/COS + SIN/COS

  • 绝对值分辨率 1 SIN/COS 每圈
  • 增量分辨率 2048 SIN/COS 每圈

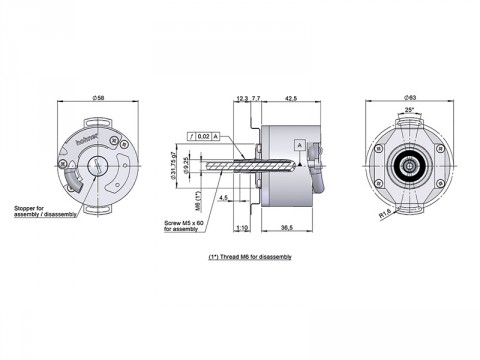

  • 外径 58 mm
  • 圆锥轴 1:10
  • 防护等级 IP54 根据 DIN EN 60529
  • 通过柔性法兰或膨胀联轴器的防旋转系统
  • 通过线缆连接（可提供其他线缆长度）
专家答疑

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Plaease enter your email to download product 3D File.

        E-mail

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        If you need 3D step-file of your reference contact us and you will receive it within one working day.

          Name*

          E-mail*

          Phone

          Company

          Country

          Message

          HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
          protection in our Privacy Policy.

          I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

          We would like you to give us your consent to:

          Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

          Fields with a * are required.

          技术规格
          材料 端盖: 铝
          外壳: 铝
          轴: 不锈钢
          轴承 滚珠
          轴承寿命 1×1010 圈
          外壳固定 膨胀联轴器 90.1101 (发货预装)
          柔性法兰 90.1027 (发货预装)
          允许轴向偏差 ±0.5 mm 轴向 (90.1101)
          ±0.5 mm 轴向, ±0.3 mm 径向 (90.1027)
          机械允许最大转速 6000 rpm
          防尘和防水等级符合 DIN EN 60529 IP54
          转子转动惯量 ≤ 3×10-6 Kgm2
          20°C (68°F) 时的启动扭矩 ≤ 0,02 Nm
          轴向允许最大负载 40 N
          径向允许最大负载 60 N
          重量 约0,4 Kg
          工作温度范围 -20ºC 至 +80ºC
          振动根据 DIN EN 60068-2-6 100 m/s2 (10Hz…2000Hz)
          冲击根据 DIN EN 60068-2-27 1000 m/s2 (6ms)
          电量消耗 ≤ 90 mA
          电源供应 5 VDC ±10%
          电子增量输出 SIN/COS, 1 Vpp ±20%
          增量分辨率 2048 SIN/COS
          电子绝对输出 SIN/COS, 1 Vpp ±20%
          绝对值分辨率 1 SIN/COS 360°
          频率 (-3 dB) ≤ 200 kHz
          信号偏移 2,5 VDC
          螺旋线缆 2 米线缆（可根据要求提供其他线缆长度或线缆连接器）
          或者 30 cm 线缆 + 连接器 D-Sub 15p

          Accessories

          Union

          Oldham-flex-clamp

          钟形耦合器

          Spring-flex

          Poly-flex

          预装线缆

          角架

          连接器

          Bellow-flex

          Cross-flex

          Pagu-flex

          Lami-flex

          Alu-flex

          法兰

          测量轮

          防旋转系统

          SKU: SMRS64S-11106012-2048 SMRS64S-11206012-2048 Categories: , , , , ,
