3D

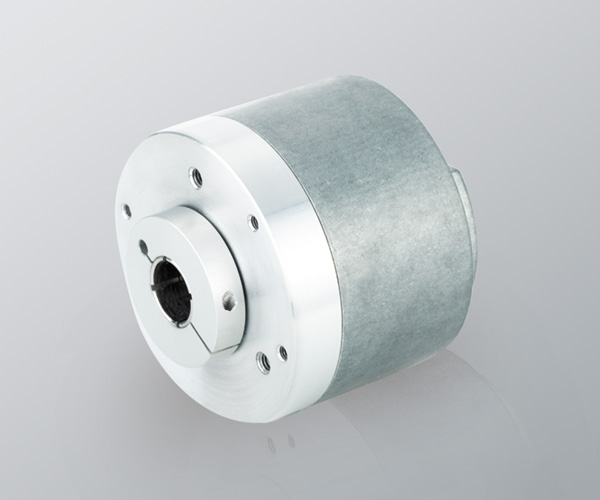

单圈绝对式和增量式盲孔空心轴编码器
- SSI
- SSI + Sin/Cos
- BiSS-C
- BiSS-C + Sin/Cos

SSI / SSI + SinCos / BiSS-C / BiSS-C + SinCos

  • 单圈分辨率 最高达 19 位
  • 增量分辨率 2048 SIN/COS

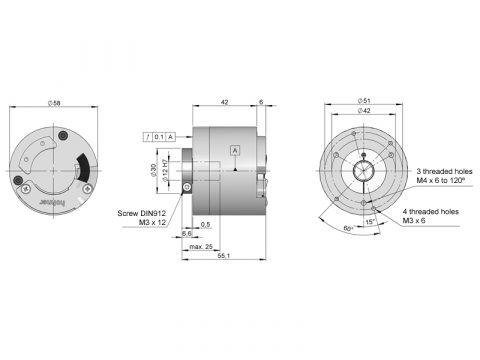

  • 外径 58 mm
  • 盲孔空心轴Ø 8, 10, 12, 14 或者 15 mm
  • 工作温度范围 最高达 100°C
  • 防护等级 IP65 根据 DIN EN 60529
  • 通过线缆或工业连接器连接. 可订制线缆长度, 连接器支持 M23
专家答疑

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Plaease enter your email to download product 3D File.

        E-mail

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        If you need 3D step-file of your reference contact us and you will receive it within one working day.

          Name*

          E-mail*

          Phone

          Company

          Country

          Message

          HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
          protection in our Privacy Policy.

          I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

          We would like you to give us your consent to:

          Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

          Fields with a * are required.

          技术规格
          材料 端盖: 铝
          外壳: 铝
          轴: 不锈钢
          轴承 滚珠
          轴承寿命 1×1010 圈
          机械允许最大转速 6000 rpm
          防尘和防水等级符合 DIN EN 60529 IP65 – 标准
          IP54 – 双绞线缆连接
          转子转动惯量 ≤ 3×10-6 Kgm²
          转子转动惯量 ≤ 0,02 Nm
          轴向允许最大负载 40 N
          径向允许最大负载 60 N
          重量 约0,4 Kg
          工作温度范围 – 10°C 至 +100°C – 标准
          – 40°C 至 +100°C – 特殊代码 MB
          振动根据 DIN EN 60068-2-6 100 m/s2 (10Hz…2000Hz)
          冲击根据 DIN EN 60068-2-27 1000 m/s2 (6ms)
          电量消耗 ≤ 90mA
          电源供应 5 VDC ±10% / 10…30 VDC
          线性度 ± ½ LSB
          双绞线缆连接 2 米线缆（可根据要求提供其他线缆长度或线缆连接器）
          轴向或径向连接 2米线缆或工业连接器 M23 或者 M12
          (其他线缆长度可订购) 或者 30 cm 线缆 + 连接器 D-Sub 15p标准包装不包括母头连接器
          SSI / BiSS 接口类型
          SSI BiSS
          电子输出 RS485 RS485
          最大通道负载电流 ±20 mA ±20 mA
          分辨率 9…19 位
          21 位 – 根据要求          		 9…19 位
          21 位 – 根据要求
          代码 二进制
          灰色的          		 二进制
          时钟频率 50 kHz … 2 MHz 50 kHz … 10 MHz
          协议 SSI BiSS-C



          增量输出
          SIN/COS
          电子输出 差分 1 Vpp
          信号偏移 2,5 VDC
          分辨率 2048 ppr
          截止频率（-3 分贝） >500 kHz
