系列 E36 HS SSI

  1. Home
  2. 单圈绝对值编码器
  3. SSI
  4. 系列 E36 HS SSI

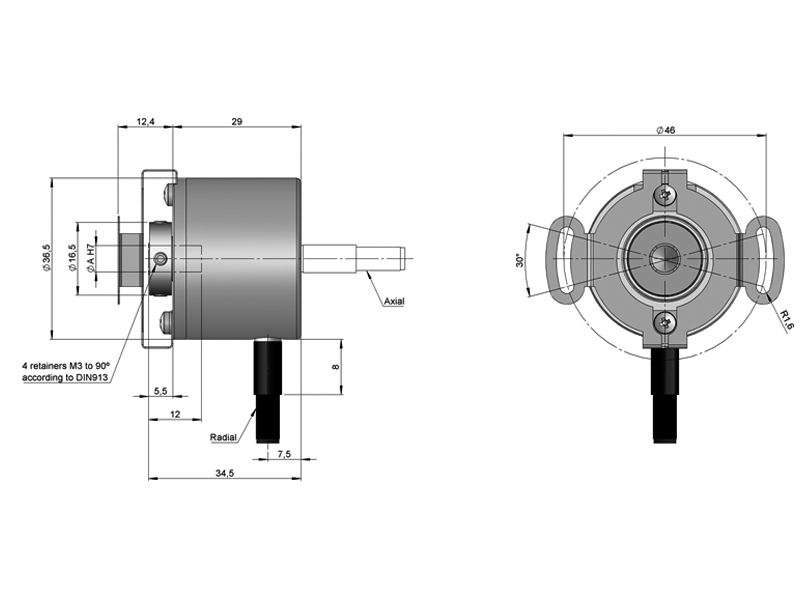

  • E36 HS + 90.1037

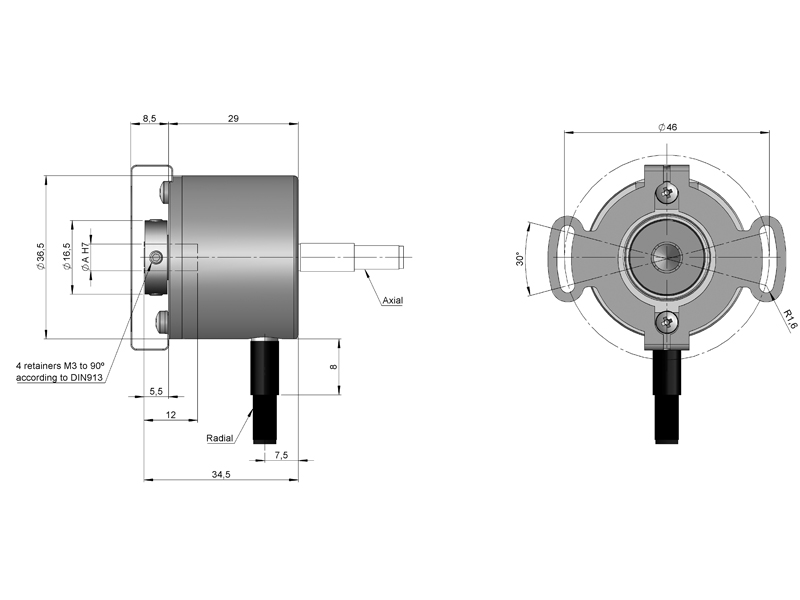

  • E36 HS + 90.1111

微型盲孔空心轴绝对单圈编码器

  • 单圈分辨率 最高达 13 位
  • 磁性技术
  • 外径 36.5 mm
  • 盲孔空心轴Ø 6 mm 或者 8 mm
  • 防护等级 IP64 根据 DIN EN 60529
  • 通过线缆连接（可提供其他线缆长度）M12
专家答疑

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Name*

        E-mail*

        Phone

        Company

        Country

        Message

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        机械规格
        材料 端盖: 铝
        外壳: 铝
        轴: 不锈钢
        轴承 滚珠
        轴承寿命 1×1010 圈
        外壳固定 柔性法兰（随附）
        允许轴向偏差 ±0.3 mm 轴向, ±0.2 mm 径向 (90.1037)
        ±0.2 mm 轴向, ±0.1 mm 径向 (90.1111)
        轴固定 紧定螺钉
        盲孔空心轴直径 6 mm 或者 8 mm
        机械允许最大转速 6000 rpm – 标准
        10000 rpm – 根据要求
        12000 rpm (≤ 12 位) – 根据要求
        防尘和防水等级符合 DIN EN 60529 IP64
        转子转动惯量 10 gcm2
        20°C (68°F) 时的启动扭矩 ≤ 0,01 Nm
        轴向允许最大负载 20 N
        径向允许最大负载 40 N
        重量 约0.08 Kg
        工作温度范围 -40°C 至 +105°C
        振动根据 DIN EN 60068-2-6 100 m/s2 (10Hz…2000Hz)
        冲击根据 DIN EN 60068-2-27 1000 m/s2 (6ms)
        轴向或径向连接 2 米线缆 (其他线缆长度可订购)
        电气规格
        接口类型 SSI
        电子输出 RS422
        电源供应 (VDC) 4,75…30 VDC
        电量消耗 ≤ 100 mA
        代码 二进制
        格雷码
        协议 SSI
        单圈分辨率 最高达 13 位
        绝对精度 ±0,35°
        相对精度 ±1,5 LSB
        最大通道负载电流 ±20 mA
        低电平信号 < 0,8 VDC
        高电平信号 2 … 5,5 VDC
        频率 50 kHz…2 MHz
        短路保护 有
        保护极性反转 有
