  4. 系列 E36 HM BiSS

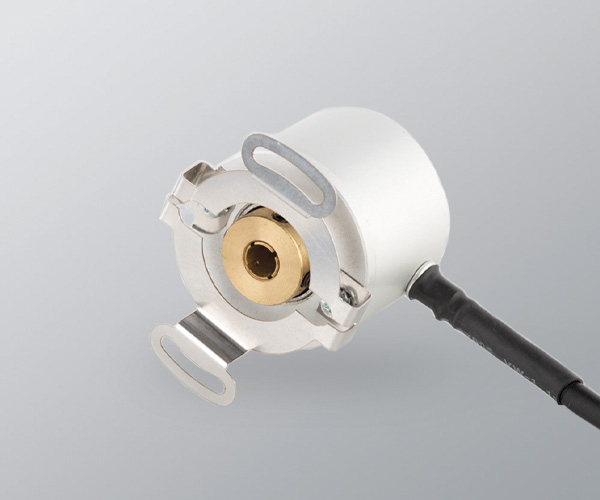

微型盲孔空心轴绝对多圈编码器

  • 单圈分辨率 取决于 13 位
  • 多圈分辨率 取决于 24 位
  • 磁性技术
  • 外径 36.5 mm
  • 盲孔空心轴Ø 6 mm 或者 8 mm
  • 防护等级 IP64 根据 DIN EN 60529
  • 通过线缆连接（可提供其他线缆长度）
专家答疑

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Plaease enter your email to download product 3D File.

        E-mail

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        If you need 3D step-file of your reference contact us and you will receive it within one working day.

          Name*

          E-mail*

          Phone

          Company

          Country

          Message

          HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
          protection in our Privacy Policy.

          I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

          We would like you to give us your consent to:

          Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

          Fields with a * are required.

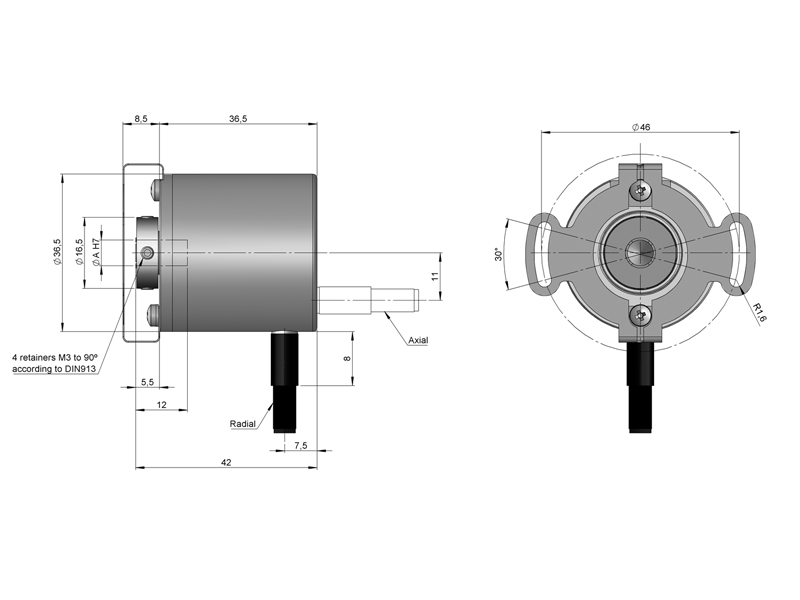

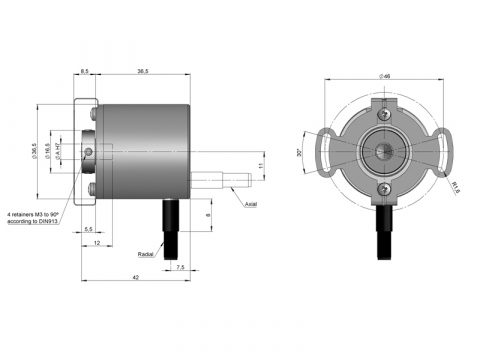

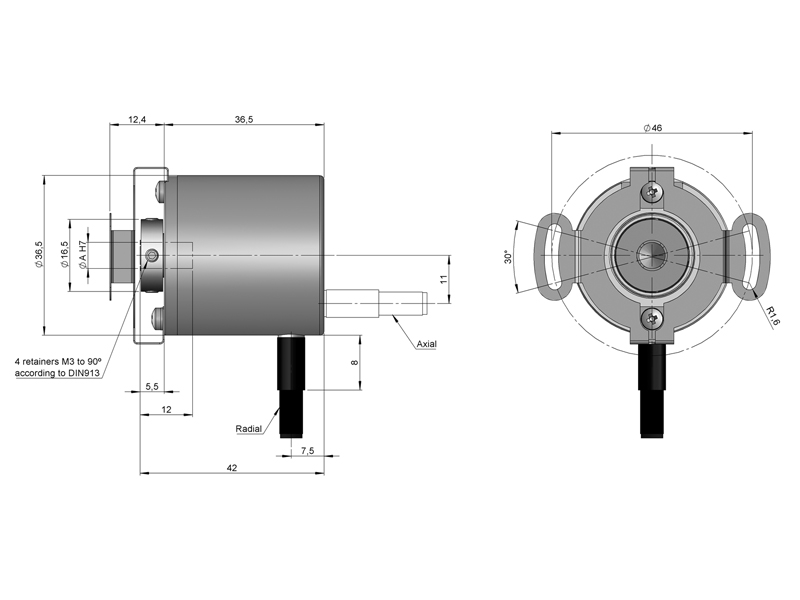

          机械规格
          材料 端盖: 铝
          外壳: 铝
          轴: 不锈钢
          轴承 滚珠
          轴承寿命 1×1010 圈
          外壳固定 柔性法兰（随附）
          允许轴向偏差 ±0.3 mm 轴向, ±0.2 mm 径向 (90.1037)
          ±0.2 mm 轴向, ±0.1 mm 径向 (90.1111)
          轴固定 紧定螺钉
          盲孔空心轴直径 6 mm 或者 8 mm
          机械允许最大转速 6000 rpm – 标准
          10000 rpm – 根据要求
          12000 rpm (≤ 12 位) – 根据要求
          防尘和防水等级符合 DIN EN 60529 IP64
          转子转动惯量 10 gcm2
          20°C (68°F) 时的启动扭矩 ≤ 0,01 Nm
          轴向允许最大负载 20 N
          径向允许最大负载 40 N
          重量 约0.08 Kg
          工作温度范围 – 40°C 至 +85°C – 标准
          – 40°C 至 +105°C – 特殊代码 A01Z
          振动根据 DIN EN 60068-2-6 100 m/s2 (10Hz…2000Hz)
          冲击根据 DIN EN 60068-2-27 1000 m/s2 (6ms)
          轴向或径向连接 2 米线缆 (其他线缆长度可订购)
          电气规格
          接口 BISS
          电子输出 RS422
          电源供应 (VDC) 4,75…30 VDC
          电量消耗 ≤ 100 mA
          代码 二进制
          协议 BISS-C
          单圈分辨率 取决于 13 位
          多圈分辨率 取决于 24 位
          绝对准确 ±0,35°
          相对准确度 ±1,5 LSB
          最大限度。 负载能力/通道 ±20 mA
          低电平信号 < 0,8 VDC
          低电平信号 2 … 5,5 VDC
          频率 50 kHz…10 MHz
          短路保护 有
          保护极性反转 有
