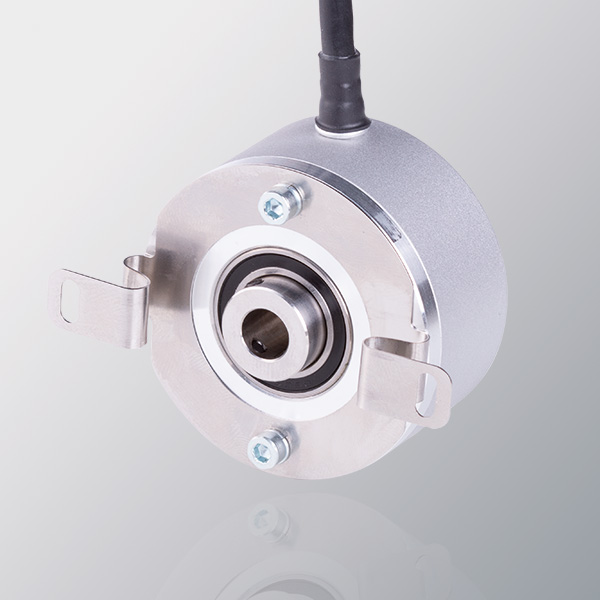

适用于工业应用的微型增量式空心轴编码器

  • 分辨率高达 32768 脉冲每转
  • 外径 50 mm
  • 空心轴Ø 4, 6 或者 8 mm
  • 防护等级 IP54 根据 DIN EN 60529
  • 通过柔性法兰的防旋转系统
  • 通过线缆连接（可提供其他线缆长度）
专家答疑

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Name*

        E-mail*

        Phone

        Company

        Country

        Message

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        机械规格
        材料 端盖: 铝
        外壳: 铝
        轴: 不锈钢
        轴承 滚珠
        轴承寿命 1×1010 圈
        外壳固定 柔性法兰
        轴固定 前端螺丝锁紧
        中空轴径 4, 6, 或者 8 mm
        机械允许最大转速 6000 rpm
        防尘和防水等级符合 DIN EN 60529 IP54
        转子转动惯量 30 gcm²
        20°C (68°F) 时的启动扭矩 ≤ 0,02 Nm
        轴向允许最大负载 20 N
        径向允许最大负载 40 N
        重量 0,5 Kg
        工作温度范围 -40°C 至 +85°C – 标准
        振动根据 DIN EN 60068-2-6 100 m/s² (10Hz…2000Hz)
        冲击根据 DIN EN 60068-2-27 1000 m/s² (6ms) [ > 1024 ppr ]
        每转最大脉冲数 32768
        径向连接 2 米线缆（可根据要求提供其他线缆长度或线缆连接器）
        输出信号
        输出电路 Push-Pull 差分 RS422 (TTL 兼容) RS422 (TTL 兼容) 推挽 差分
        电源供应 11…30 VDC 5 VDC ±5% 11…30 VDC 5…30 VDC
        输出电压 11…30 VDC 5 VDC 5 VDC 5…30 VDC
        电量消耗 典型值: 45 mA
        最大限度: 150 mA        		 典型值: 70 mA
        最大限度: 150 mA        		 典型值: 80 mA
        最大限度: 160 mA        		 典型值: 70 mA
        最大限度: 150 mA
        最大限度。 负载能力/通道 ±30 mA ±20 mA ±20 mA ±30 mA
        低电平信号 VOL < 2.5 VDC VOL < 0.5 VDC VOL < 0.5 VDC VOL < 2.5 VDC
        低电平信号 VOH > VCC – 3 VDC VOH > 2.5 VDC VOH > 2.5 VDC VOH > VCC – 3 VDC
        频率 300 kHz 300 kHz 300 kHz 300 kHz
        短路保护 有 有 有 有
        保护极性反转 有 有 有 有
        通道 B 领先（90° 电气角）通道 A，从轴向看，轴顺时针旋转
