3D

适用于重型工业应用的高分辨率增量式实心轴编码器

  • 分辨率高达 50000 脉冲每转
  • 外径 90 mm
  • 轴 Ø 12 mm
  • 防护等级 IP67 根据 DIN EN 60529
  • 可根据要求提供不同机械、电子和特殊光学形式的产品
  • 通过线缆连接（可提供其他线缆长度）
专家答疑

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Plaease enter your email to download product 3D File.

        E-mail

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        If you need 3D step-file of your reference contact us and you will receive it within one working day.

          Name*

          E-mail*

          Phone

          Company

          Country

          Message

          HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
          protection in our Privacy Policy.

          I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

          We would like you to give us your consent to:

          Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

          Fields with a * are required.

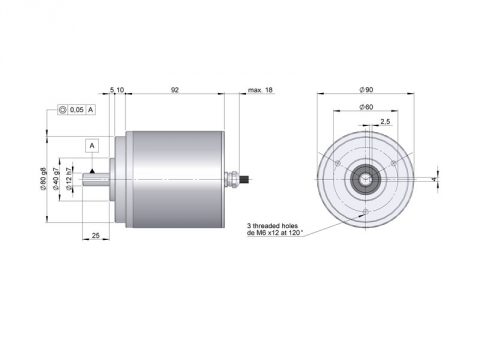

          机械规格
          材料 端盖: 不锈钢 AISI304
          外壳: 不锈钢 AISI304
          轴: 不锈钢 AISI304
          轴承 滚珠
          轴承寿命 1×1010 圈
          机械允许最大转速 6000 rpm
          防尘和防水等级符合 DIN EN 60529 IP67
          转子转动惯量 270 gcm2
          20°C (68°F) 时的启动扭矩 ≤ 0,05 Nm
          轴向允许最大负载 80 N
          径向允许最大负载 100 N
          重量 约1.2 Kg
          工作温度范围 – 20°C 至 +80°C – 标准
          – 40°C 至 +80°C – 特殊代码 FT00
          振动根据 DIN EN 60068-2-6 100 m/s2 (10Hz…2000Hz)
          冲击根据 DIN EN 60068-2-27 1000 m/s2 (6ms)
          每转最大脉冲数 50.000
          轴向连接 2 米线缆（可根据要求提供其他线缆长度或线缆连接器）
          输出信号
          输出电路 NPN 集电极开路 RS422 (TTL兼容) RS422 (TTL兼容) 推挽 差分
          电源供应 11…30 VDC 11…30 VDC 5 VDC ±5% 11…30 VDC
          输出电压 11…30 VDC 5 VDC 5 VDC 11…30 VDC
          电量消耗 40 mA 典型值: 80 mA
          最大限度: 160 mA          		 典型值: 70 mA
          最大限度: 150 mA          		 典型值: 45 mA
          最大限度: 150 mA
          最大限度。 负载能力/通道 40 mA ±20 mA ±20 mA ±30 mA
          允许线缆长度 50 m (24 VDC) 1200 m 1200 m 100 m
          低电平信号 VOL < 0.4 VDC (24 VDC) VOL < 0.5 VDC VOL < 0.5 VDC VOL < 2.5 VDC
          低电平信号 VOH > 22 VDC (24 VDC) VOH > 2.5 VDC VOH > 2.5 VDC VOH > VCC – 3 VDC
          频率 100 kHz 300 kHz 300 kHz 200 kHz
          短路保护 非永久 有 有 有
          保护极性反转 有 有 无 有
          通道 B 领先（90° 电气角）通道 A，从轴向看，轴顺时针旋转.
