适用于工业应用的微型盲孔空心轴增量编码器

  • 分辨率高达 10000 脉冲每转
  • 外径 36.5 mm
  • 盲孔空心轴Ø 6 mm
  • 轴固定通过 紧定螺钉
  • 防护等级 IP64 根据 DIN EN 60529
  • 通过柔性法兰或插销力臂支撑的防旋转系统
  • 通过线缆或工业连接器连接. 可订制线缆长度, 连接器支持 M12
专家答疑

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Plaease enter your email to download product 3D File.

        E-mail

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        If you need 3D step-file of your reference contact us and you will receive it within one working day.

          Name*

          E-mail*

          Phone

          Company

          Country

          Message

          HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
          protection in our Privacy Policy.

          I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

          We would like you to give us your consent to:

          Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

          Fields with a * are required.

          机械规格
          材料 端盖: 铝
          外壳: 铝
          轴: 黄铜
          轴承 滚珠
          轴承寿命 1×1010 圈

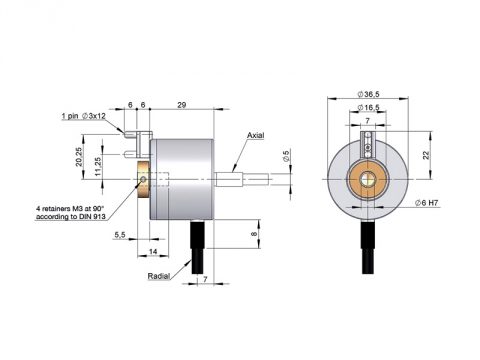

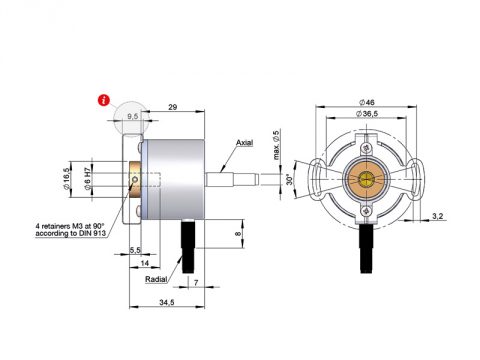

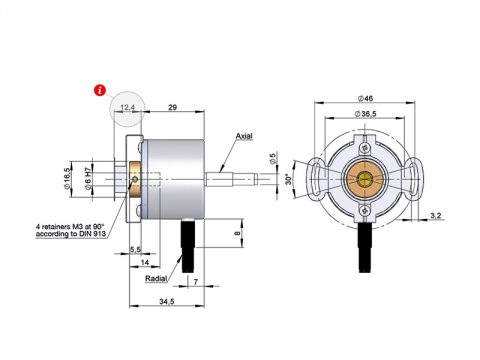

          外壳固定 防旋转销或柔性法兰（随附）
          允许轴向偏差 ±0.3 mm 轴向, ±0.1 mm 径向 (93.0108205)
          ±0.3 mm 轴向, ±0.2 mm 径向 (90.1037)
          ±0.2 mm 轴向, ±0.1 mm 径向 (90.1111)
          轴固定 紧定螺钉
          盲孔空心轴直径 6 mm.
          机械允许最大转速 6000 rpm
          防尘和防水等级符合 DIN EN 60529 IP64
          转子转动惯量 10 gcm2
          20°C (68°F) 时的启动扭矩 ≤ 0,01 Nm
          轴向允许最大负载 20 N
          径向允许最大负载 40 N
          重量 约0.1 Kg
          工作温度范围 – 20°C 至 +80°C – 标准
          – 40°C 至 +80°C – 特殊代码 PT00
          振动根据 DIN EN 60068-2-6 100 m/s2 (10Hz…2000Hz)
          冲击根据 DIN EN 60068-2-27 1000 m/s2 (6ms)
          每转最大脉冲数 10000
          轴向或径向连接 2米线缆或工业连接器 M12 (可订制线缆长度)
          标准包装不包括母头连接器
          OUTPUT SIGNALS
          输出电路 NPN 集电极开路 Push-Pull 差分 RS422 (TTL兼容)
          电源供应 11…30 VDC 11…30 VDC 5 VDC ±10%
          输出电压 11…30 VDC 11…30 VDC 5 VDC
          电量消耗 40 mA 典型值: 45 mA
          最大限度: 150 mA          		 典型值: 70 mA
          最大限度: 150 mA
          最大限度。 负载能力/通道 40 mA ±30 mA ±20 mA
          允许线缆长度 50 m (24 VDC) 100 m 1200 m
          低电平信号 VOL < 0.4 VDC (24 VDC) VOL < 2.5 VDC VOL < 0.5 VDC
          低电平信号 VOH > 22 VDC (24 VDC) VOH > Vcc – 3 VDC VOH > 2.5 VDC
          频率 100 kHz 200 kHz 300 kHz
          短路保护 非永久 有 有
          保护极性反转 有 有 无
          通道 A 领先（90° 电气角）通道 B，从轴向看，轴顺时针旋转.
