适用于重载工业应用的增量编码器

  • 分辨率高达 2048 脉冲每转
  • 外径 134 mm
  • 空心轴直径Ø 16 至 25 mm
  • 隔离轴
  • 防护等级 IP68 根据 DIN EN 60529
  • 油浸操作可达 90°C / 10 bar
  • 提供 HTL 和 TTL 输出信号
  • 冗余磁传感
  • 坚固的铝制外壳具有高抗振动性和抗冲击性
专家答疑

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Name*

        E-mail*

        Phone

        Company

        Country

        Message

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

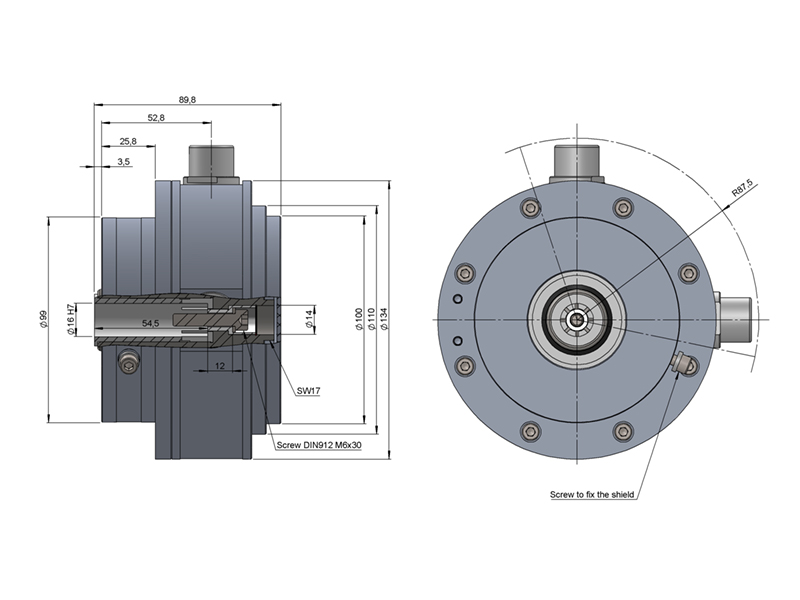

        机械规格
        材料 外壳: 阳极氧化铝 20 μm
        轴: 不锈钢 AISI316
        轴承 带陶瓷球的双组混合轴承
        浸入式 液压油 (*)
        轴固定 螺丝 M6x30
        中空轴径 16 至 25 mm (≤ 20 mm 带轴隔离)
        机械允许最大转速 2800 rpm
        防尘和防水等级符合 DIN EN 60529 IP68
        转子转动惯量 4,7 Kgcm²
        20°C (68°F) 时的启动扭矩 ≈ 0,5 Nm
        轴向允许最大负载 150 N
        径向允许最大负载 200 N
        重量 ≈ 2,4 Kg
        工作温度范围 20°C 至 +90°C
        振动根据 DIN EN 60068-2-6 150 m/s2 (15g) (10Hz…2000Hz)
        冲击根据 DIN EN 60068-2-27 2000 m/s2 (12ms)
        每转最大脉冲数 128, 256, 512, 1024, 2048
        出线 工业连接器 8p (母头连接器)
        IP68; 气密密封
        不包括配合连接器

        (*) Shell Tellus S2 V 46

        输出信号
        输出电路 HTL TTL RS422
        电源供应 9…30 VDC 5 VDC ±5%
        电量消耗 (无负载) ≤ 90 mA (每个系统) ≤ 90 mA (每个系统)
        频率 100 kHz 100 kHz
        通道 A 领先（90° 电气角）通道 B，从轴向看，轴顺时针旋转

        编码器符合电磁兼容性标准（EMC）:

        > 住宅、商业和轻工业环境中的排放 (UNE-EN 61000-6-3:2007 + A1: 2012).
        > 工业环境中的抗扰度 (UNE-EN 61000-6-2:2006 + ERR:2009).
