系列 10

  1. Home
  2. Applications
  3. Chemical industry
  4. 系列 10
3D

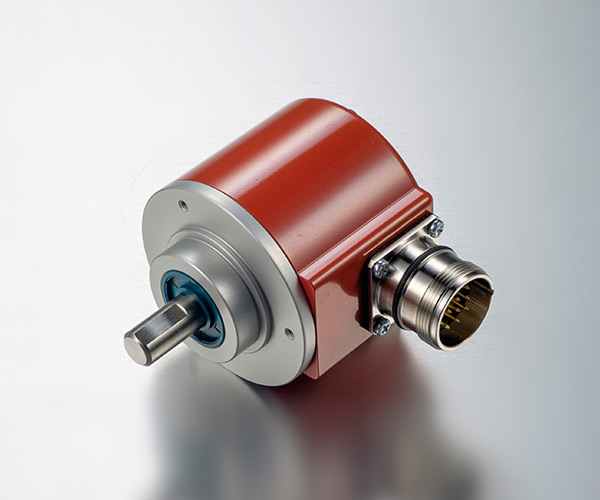

工业应用凸出轴增量值编码器

  • 每圈脉冲数从1到50000
  • 外径58 mm
  • 轴径6至12 mm
  • 基于DIN EN 60529  的IP67保护
  • 各种设置不同的法兰
  • 根据要求可为机械、电子和光学执行
  • 电缆连接(配有任何长度的电缆或空中连接器)
专家答疑

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Plaease enter your email to download product 3D File.

        E-mail

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        If you need 3D step-file of your reference contact us and you will receive it within one working day.

          Name*

          E-mail*

          Phone

          Company

          Country

          Message

          HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
          protection in our Privacy Policy.

          I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

          We would like you to give us your consent to:

          Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

          Fields with a * are required.

          机械规格
          材料 端盖: 铝
          外壳: 铝
          轴: 不锈钢
          轴承 滚珠
          轴承寿命 1×1010 圈
          轴径 6, 6.35, 8, 9.52, 10 或者 12 mm
          机械允许最大转速 6000 rpm
          防尘和防水等级符合 DIN EN 60529 IP65 – 标准
          IP67 – 选项 10A
          转子转动惯量 30 gcm2
          20°C (68°F) 时的启动扭矩 ≤ 0,02 Nm – 标准
          ≤ 0,03 Nm – 选项 10A
          轴向允许最大负载 40 N
          径向允许最大负载 80 N
          重量 约0.5 Kg
          工作温度范围 – 20°C 至 +80°C – 标准
          -40°C 至 +80°C – 特殊代码 AT00
          振动根据 DIN EN 60068-2-6 100 m/s2 (10Hz…2000Hz)
          冲击根据 DIN EN 60068-2-27 1000 m/s2 (6ms)
          每转最大脉冲数 50000
          轴向或径向连接 2米线缆或工业连接器 (可提供不同型号，其他线缆长度可订购)标准包装不包括母头连接器
          输出信号
          输出电路 NPN 集电极开路 RS422 (TTL兼容) RS422 (TTL兼容) Push-Pull 差分
          电源供应 11…30 VDC 11…30 VDC 5 VDC ±5% 11…30 VDC
          输出电压 11…30 VDC 5 VDC 5 VDC 11…30 VDC
          电量消耗 40 mA 典型值: 80 mA
          最大限度: 160 mA          		 典型值: 70 mA
          最大限度: 150 mA          		 典型值: 45 mA
          最大限度: 150 mA
          最大限度。 负载能力/通道 40 mA ±20 mA ±20 mA ±30 mA
          允许线缆长度 50 m (24 VDC) 1200 m 1200 m 100 m
          低电平信号 VOL < 0.4 VDC (24 VDC) VOL < 0.5 VDC VOL < 0.5 VDC VOL < 2.5 VDC
          低电平信号 VOH > 22 VDC (24 VDC) VOH > 2.5 VDC VOH > 2.5 VDC VOH > VCC – 3 VDC
          频率 100 kHz 300 kHz 300 kHz 200 kHz
          短路保护 非永久 有 有 有
          保护极性反转 有 有 非永久 有
          通道 B 领先（90° 电气角）通道 A，从轴向看，轴顺时针旋转
