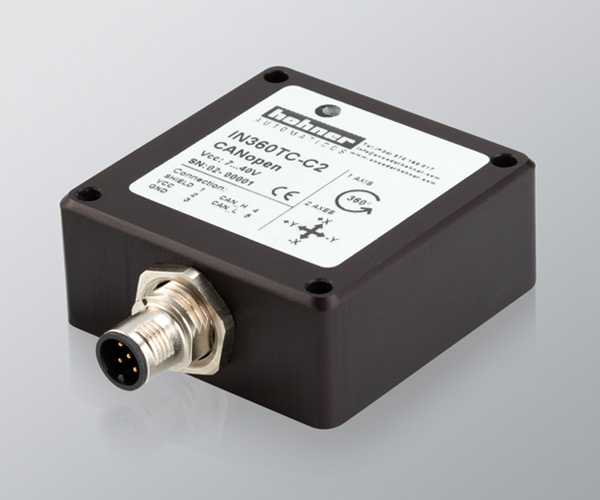

倾角仪 CANOPEN

  • 高分辨率 (最高达 0.001°)
  • 高准确率 (最高达 ±0.05°)
  • 内部软件诊断检查
  • 单轴 和 双轴 倾角测量
  • 防振可编程滤波器
  • CANopen 接口 (DS301 DSP-410)
  • 防护等级 IP67
  • 通过 CAN 框架非常容易进行编程，无需额外工具
Buy Online
专家答疑

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Name*

        E-mail*

        Phone

        Company

        Country

        Message

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

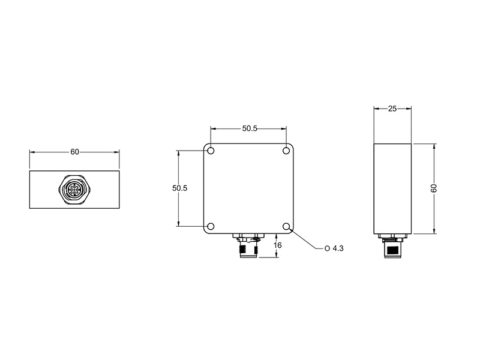

        机械规格
        材料 外壳: 阳极氧化铝
        防护等级 根据 DIN EN 60529 IP67
        重量 180 g (150…220 g)
        储存温度范围 -40°C 至 +85° C
        工作温度范围 -40°C 至 +85° C
        振动根据 DIN EN 60068-2-6 40 m/s² (8,2Hz…500Hz), 5 周期, 3 轴
        冲击根据 DIN EN 60068-2-27 3000 m/s² (11ms)
        出线 5p M12 公头
        电气规格
        测量范围 0 … 360° 或者 ±180° (单轴)
        ±5 … ±60° (双轴)
        分辨率 (*)
        (用户可编程)        		 0.01° (1…0.001°)
        电源电压范围 12/24 V (7…40 V)
        目前的消费 30 mA (max. 45 mA)
        高准确率 ±0.05 … ±0.10° (0 … 360°)
        ±0.05 … ±0.15° (±60°)
        采样率 550 S/s
        波特率
        (用户可编程)        		 500 Kbit/s (10…1000 Kbit/s)
        温度漂移 ±0.008°/°C (IN360C)
        ±0.002°/°C (IN360TC)

        (*) 0.001° 仅当双轴模式下范围低于 ±30° 时。
