  • Serie CS-CM30 IP67 Parallel Map

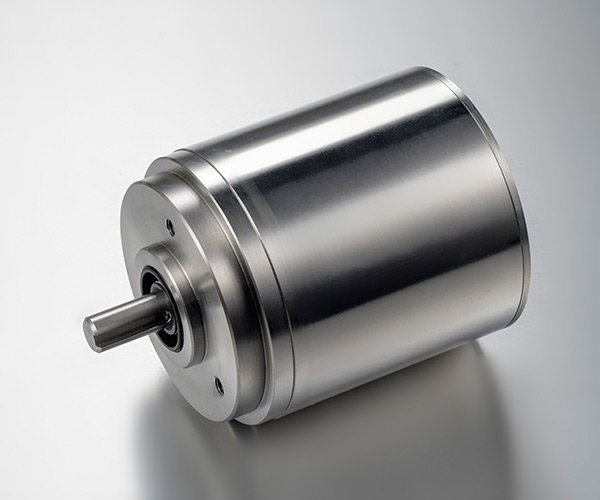

ЭНКОДЕР АБСОЛЮТНЫЙ ДЛЯ ЭКСТРЕМАЛЬНЫХ УСЛОВИЙ

  • Разрешение однооборотное до 13 bit
  • Уровень защиты IP67 по DIN EN 60529
  • Внешний диаметр 90 mm
  • Выходящий вал
Спроси эксперта

    Наша команда экспертов будет ответить на ваши вопросы как можно скорее.

    Ваше имя*

    Ваш E-Mail*

    телефон

    компания

    Сообщение

    Подпишитесь на нашу рассылку?

    I have read and I accept the terms and conditions.*

    HOHNER AUTOMATION, S.L. informs you that the personal data that you provide by filling out this form will be treated with the purpose of sending you the information requested. The legitimation of the treatment is carried out through the consent of the interested party. Failure to enter your personal data will make it impossible to meet your request. You can exercise your rights of access, rectification, cancellation and deletion of personal data by contacting info@encoderhohner.com or by post to HOHNER AUTOMATION, S.L., P.I. Cal Batlle - C/ Dolors Bassa, 3, 17400 - Breda (Girona) Spain.

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Name*

        E-mail*

        Phone

        Company

        Country

        Message

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        MECHANICAL SPECIFICATIONS
        Materials Cover: Aluminium
        Housing: Aluminium
        Shaft: Stainless Steel
        Bearings Ballraces
        Bearings lifetime 1×1010 rev.
        Maximum number of revolutions permitted mechanically 6000 rpm
        Protection against dust and splashes according to DIN EN 60529 IP65 — Standard
        IP67 — Option 10A
        Rotor inertia moment 30 gcm2
        Starting torque at 20ºC (68ºF) ≤ 0,02 Nm — Standard
        ≤ 0,03 Nm — Option 10A
        Maximum load permitted on axial shaft 40 N
        Maximum load permitted on radial shaft 80 N
        Weight aprox. 0,5 Kg
        Operating temperature range -20ºC to +80ºC — Standard
        -40ºC to +80ºC — Special Customer AT00
        Vibration according to DIN EN 60068-2-6 100 m/s2 (10Hz…2000Hz)
        Shock accoording to DIN EN 60068-2-27 1000 m/s2 (6ms)
        Maximum pulses per turn 50.000
        Axial or radial connection 2 meters cable or industrial connector (different models available, other cable lenghts available on order)
        Female connector not included
