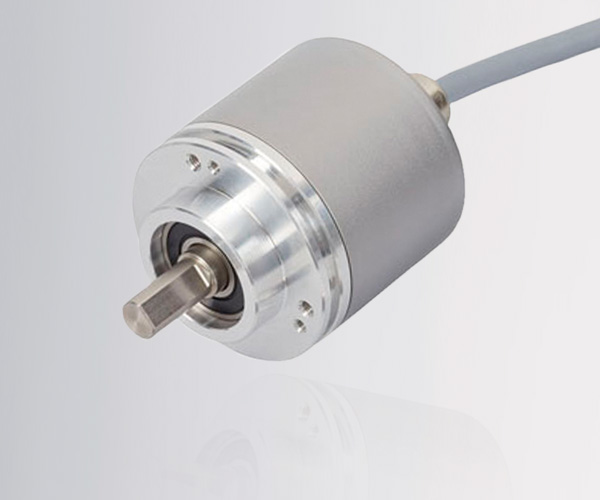

MULTITURN ABSOLUTE ENCODER

  • Parallel
  • Singleturn resolution up to 13 bits
  • Multiturn resolution up to 25 bits
  • External diameter 58,5 mm
  • Shaft Ø 6, 10 or 12 mm
  • Protection class IP65 according to DIN EN 60529
  • Connection by cable (other cable length available) or industrial connector
Спроси эксперта

    Наша команда экспертов будет ответить на ваши вопросы как можно скорее.

    Ваше имя*

    Ваш E-Mail*

    телефон

    компания

    Сообщение

    Подпишитесь на нашу рассылку?

    I have read and I accept the terms and conditions.*

    HOHNER AUTOMATION, S.L. informs you that the personal data that you provide by filling out this form will be treated with the purpose of sending you the information requested. The legitimation of the treatment is carried out through the consent of the interested party. Failure to enter your personal data will make it impossible to meet your request. You can exercise your rights of access, rectification, cancellation and deletion of personal data by contacting info@encoderhohner.com or by post to HOHNER AUTOMATION, S.L., P.I. Cal Batlle - C/ Dolors Bassa, 3, 17400 - Breda (Girona) Spain.

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Name*

        E-mail*

        Phone

        Company

        Country

        Message

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

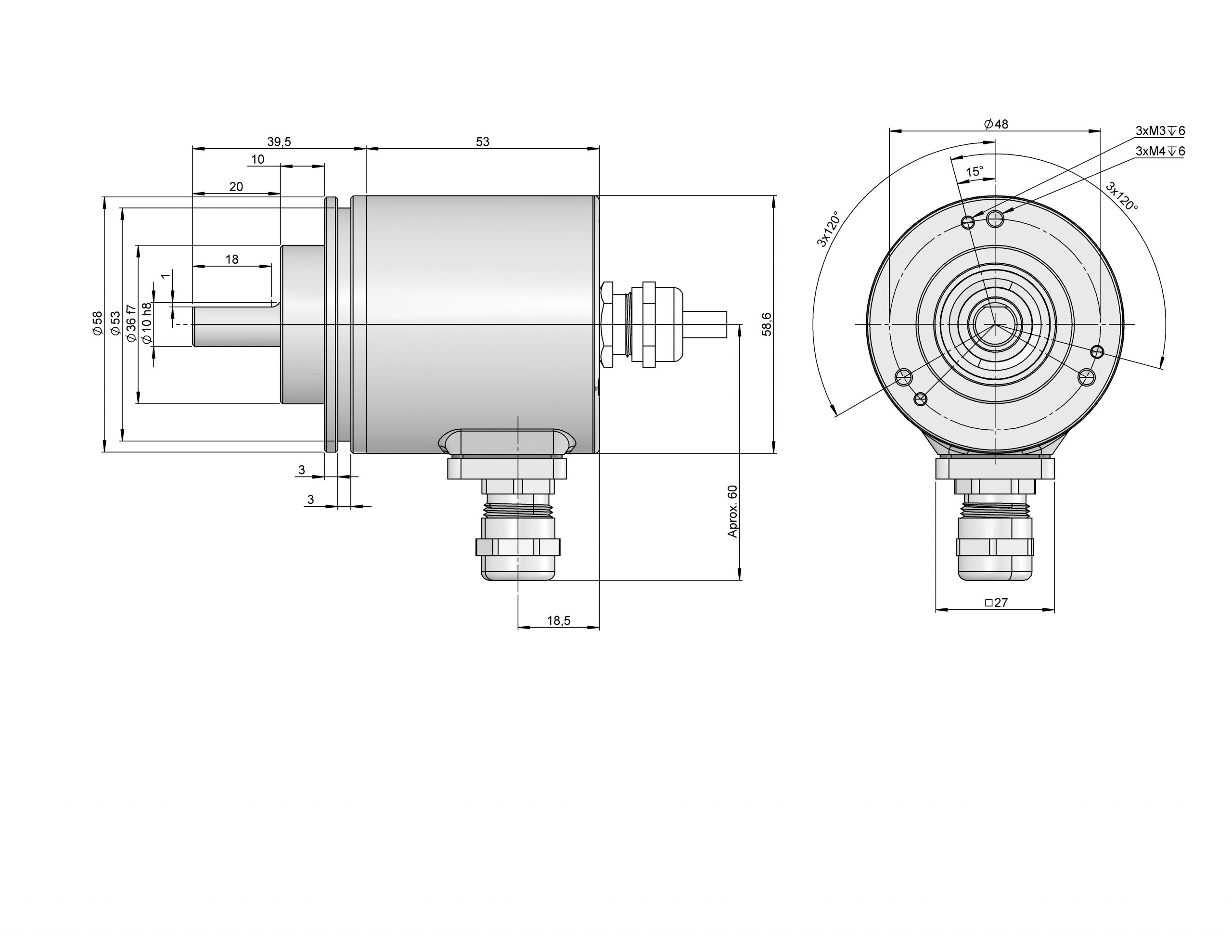

        MECHANICAL SPECIFICATIONS
        Materials Housing: Steel
        Flange: Aluminium
        Shaft: Stainless Steel
        Bearings Ballraces
        Bearings lifetime 55×108 rpm
        Shaft diameter 6, 10 or 12 mm
        Maximum number of revolutions permitted mechanically 12000 rpm
        Protection against dust and splashes according to DIN EN 60529 IP65
        Rotor inertia moment 30 gcm2
        Starting torque at 20ºC (68ºF) ≤ 3 Ncm
        Maximum load permitted on axial shaft 40 N
        Maximum load permitted on radial shaft 110 N
        Weight aprox  0,3 kg
        Operating temperature range -30ºC to +70ºC
        Vibration 100 m/s2 (10Hz…2000Hz)
        Shock 1000 m/s2 (6ms)
        Axial or radial connection 2 meters cable or industrial connector (other cable lengths available on order)
        Female connector not included
        ELECTRICAL SPECIFICATION
        Interface Parallel
        Code Binary
        Gray
        Singleturn resolution up to 8192 points per turn (13 bits)
        Multiturn resolution up to 4096 turns (12 bits)
        Accuracy ±0.0439º
        Parameters config. Direction



        Accessories

        СОЕДИНИТЕЛИ

        ВСТРОЕННЫЙ КАБЕЛЬ

        Poly-flex

        Pagu-flex

        Oldham-flex-clamp

        Bellow-flex

        Lami-flex

        ИЗМЕРИТЕЛЬНЫЕ КОЛЕСА

        ФЛАНЦЫ СОЕДИНЕНИЯ

        СОЕДИНИТЕЛЬНЫЕ КОЛОКОЛА

        Spring-flex

        Alu-flex

        Union

        Cross-flex

        ГИБКИЕ ПРОТИВОРОТАЦИОННЫЕ СИСТЕМЫ

        УГЛЫ ОПОРЫ

        SKU: CM10-PAR-121312-1212 CM10-PAR-111111-1213 CM10-PAR-381311-1213 CM10-PAR-221112-1213 Categories: , , ,
