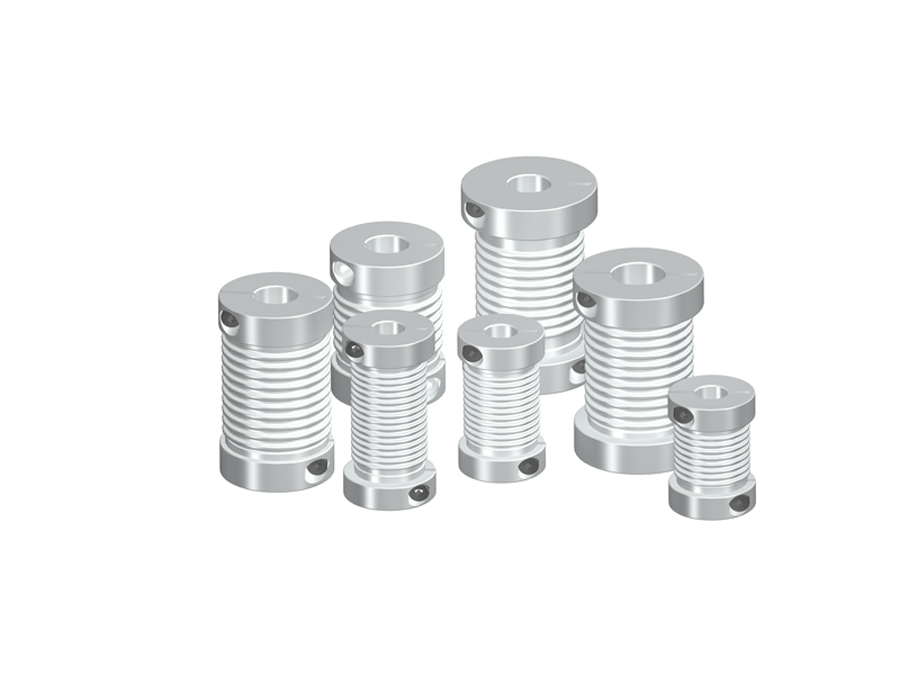

ГИБКИЕ СИЛЬФОННЫЕ МУФТЫ

  • Очень высокое поглощение перекосов
  • Удаление осевых нагрузок из-за перекосов
  • Без износа и утомляемости
  • Без кинематических ошибок передачи
  • Высокая торсионная жесткость
Спроси эксперта

    Наша команда экспертов будет ответить на ваши вопросы как можно скорее.

    Ваше имя*

    Ваш E-Mail*

    телефон

    компания

    Сообщение

    Подпишитесь на нашу рассылку?

    I have read and I accept the terms and conditions.*

    HOHNER AUTOMATION, S.L. informs you that the personal data that you provide by filling out this form will be treated with the purpose of sending you the information requested. The legitimation of the treatment is carried out through the consent of the interested party. Failure to enter your personal data will make it impossible to meet your request. You can exercise your rights of access, rectification, cancellation and deletion of personal data by contacting info@encoderhohner.com or by post to HOHNER AUTOMATION, S.L., P.I. Cal Batlle - C/ Dolors Bassa, 3, 17400 - Breda (Girona) Spain.

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Plaease enter your email to download product 3D File.

        E-mail

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        If you need 3D step-file of your reference contact us and you will receive it within one working day.

          Name*

          E-mail*

          Phone

          Company

          Country

          Message

          HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
          protection in our Privacy Policy.

          I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

          We would like you to give us your consent to:

          Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

          Fields with a * are required.

          TECHNICAL SPECIFICATIONS
          Torque max. Clamping Torque max. Max. Speed Admissible max. misalignment Torsion spring stiffness Radial spring stiffness Weight Inertia
          Angular Axial Radial
          BFP 1222 15 Ncm 50 Ncm 10.000 rpm ±2,5 degree ±0,4 mm ±0,2 mm 45 Nm/rad 30 N/mm 8 g 1,8 gcm2
          BFP 1520 40 Ncm 70 Ncm 10.000 rpm ±3 degree ±0,4 mm ±0,2 mm 90 Nm/rad 40 N/mm 6 g 2 gcm2
          BFP 1525 40 Ncm 70 Ncm 10.000 rpm ±4 degree ±0,5 mm ±0,3 mm 70 Nm/rad 15 N/mm 7 g 2,3 gcm2
          BFP 2029 120 Ncm 150 Ncm 10.000 rpm ±4 degree ±0,4 mm ±0,25 mm 150 Nm/rad 25 N/mm 15 g 8 gcm2
          BFP 2035 100 Ncm 150 Ncm 10.000 rpm ±4 degree ±0,5 mm ±0,3 mm 150 Nm/rad 10 N/mm 16 g 9 gcm2
          BFP 2533 200 Ncm 80 Ncm 10.000 rpm ±8 degree ±2,77 mm ±0,46 mm 210 Nm/rad 29 N/mm 19,5 g 16,1 gcm2
          BFA 1622 40 Ncm 50 Ncm 10.000 rpm ±3 degree ±0,4 mm ±0,2 mm 90 Nm/rad 40 N/mm 6 g 2,1 gcm2
          BFA 2129 120 Ncm 100 Ncm 10.000 rpm ±4 degree ±0,4 mm ±0,25 mm 150 Nm/rad 25 N/mm 15 g 9 gcm2
          BFA 2135 100 Ncm 100 Ncm 10.000 rpm ±4 degree ±0,5 mm 0,3 mm 140 Nm/rad 10 N/mm 16 g 9,5 gcm2
          BFA 2435 100 Ncm 100 Ncm 10.000 rpm ±4 degree ±0,5 mm ±0,3 mm 140 Nm/rad 10 N/mm 18 g 15,2 gcm2
          BFA 2537 200 Ncm 66 Ncm 10.000 rpm ±8 degree ±2,77 mm ±0,46 mm 210 Nm/rad 29 N/mm 28,5 g 25,4 gcm2
