3D

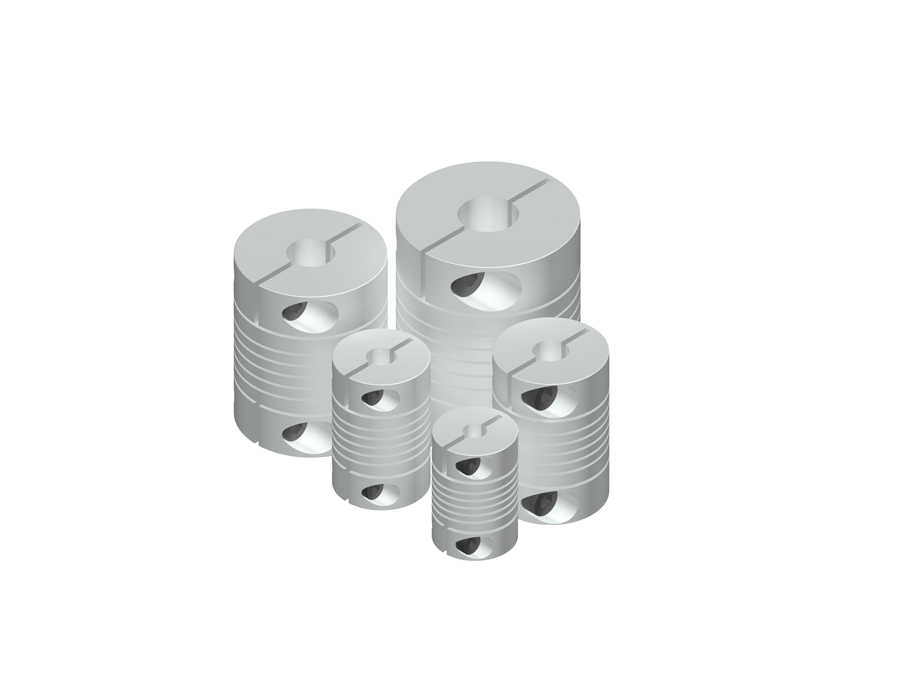

АЛЮМИНИЕВЫЕ ГИБКИЕ МУФТЫ ИЛИ ИЗ НЕРЖАВЕЮЩЕЙ СТАЛИ

  • Минимальный свободный ход. Не приводит к изменениями скорости передачи.
  • Высокая крутильная жесткость
  • Возможны с зажимом и со стопорным винтом
  • Устойчивы к воздействию масел и химических реагентов
  • Механическая защита от чрезмерного крутящего момента
Спроси эксперта

    Наша команда экспертов будет ответить на ваши вопросы как можно скорее.

    Ваше имя*

    Ваш E-Mail*

    телефон

    компания

    Сообщение

    Подпишитесь на нашу рассылку?

    I have read and I accept the terms and conditions.*

    HOHNER AUTOMATION, S.L. informs you that the personal data that you provide by filling out this form will be treated with the purpose of sending you the information requested. The legitimation of the treatment is carried out through the consent of the interested party. Failure to enter your personal data will make it impossible to meet your request. You can exercise your rights of access, rectification, cancellation and deletion of personal data by contacting info@encoderhohner.com or by post to HOHNER AUTOMATION, S.L., P.I. Cal Batlle - C/ Dolors Bassa, 3, 17400 - Breda (Girona) Spain.

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Plaease enter your email to download product 3D File.

        E-mail

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        If you need 3D step-file of your reference contact us and you will receive it within one working day.

          Name*

          E-mail*

          Phone

          Company

          Country

          Message

          HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
          protection in our Privacy Policy.

          I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

          We would like you to give us your consent to:

          Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

          Fields with a * are required.

          TECHNICAL SPECIFICATIONS
          Torque Clamping Torque Max. Speed Admissible max. misalignment Torsion spring stiffness Radial spring stiffness Weight Inertia
          Angular Axial Radial
          AFP 6508 2 Ncm 8 Ncm 8.000 rpm ±2 degree ±0,15 mm ±0,1 mm 0,55 Nm/rad 24 N/mm 0,5 g 0,02 gcm2
          AFP 1015 15 Ncm 15 Ncm 8.000 rpm ±2 degree ±0,2 mm ±0,15 mm 2,2 Nm/rad 22 N/mm 2,4 g 0,34 gcm2
          AFP 1218 25 Ncm 35 Ncm 8.000 rpm ±2,5 degree ±0,25 mm ±0,15 mm 2,8 Nm/rad 28 N/mm 4 g 0,83 gcm2
          AFP 1622 40 Ncm 80 Ncm 8.000 rpm ±3 degree ±0,3 mm ±0,2 mm 5 Nm/rad 34 N/mm 9,5 g 3,2 gcm2
          AFP 1922 60 Ncm 80 Ncm 8.000 rpm ±3,5 degree ±0,4 mm ±0,25 mm 9 Nm/rad 40 N/mm 13 g 6,7 gcm2
          AFP 2524 100 Ncm 120 Ncm 8.000 rpm ±4 degree ±0,5 mm ±0,3 mm 20 Nm/rad 60 N/mm 26 g 22,2 gcm2
          AFP 2532 100 Ncm 120 Ncm 8.000 rpm ±4 degree ±0,5 mm ±0,3 mm 18 Nm/rad 50 N/mm 35 g 30 gcm2
          AFP 3030 150 Ncm 120 Ncm 8.000 rpm ±4 degree ±0,5 mm ±0,3 mm 21 Nm/rad 60 N/mm 45 g 57 gcm2
          AFP 3038 150 Ncm 120 Ncm 8.000 rpm ±4 degree ±0,5 mm ±0,3 mm 21 Nm/rad 60 N/mm 60 g 76 gcm2
          AFA 1421 50 Ncm 50 Ncm 6.000 rpm ±3 degree ±0,25 mm ±0,2 mm 4,5 Nm/rad 22 N/mm 6,5 g 1,9 gcm2
          AFA 1625 60 Ncm 50 Ncm 6.000 rpm ±3,5 degree ±0,3 mm ±0,2 mm 5,5 Nm/rad 30 N/mm 10 g 3,8 gcm2
          AFA 1928 80 Ncm 120 Ncm 6.000 rpm ±4 degree ±0,4 mm 0,25 mm 8 Nm/rad 36 N/mm 16 g 8,7 gcm2
          AFA 2532 100 Ncm 100 Ncm 6.000 rpm ±4 degree ±0,5 mm 0,35 mm 16 Nm/rad 45 N/mm 34 g 29 gcm2
          IFA 2532 200 Ncm 150 Ncm 6.000 rpm ±4 degree ±0,5 mm 0,35 mm 29 Nm/rad 150 N/mm 88 g 84 gcm2
          AFA 3038 150 Ncm 100 Ncm 6.000 rpm ±4 degree ±0,5 mm 0,35 mm 19 Nm/rad 60 N/mm 58 g 76 gcm2
