SINGLETURN ABSOLUTE AND INCREMENTAL CONIC SHAFT ENCODER
- SSI
- SSI + Sin/Cos
- BiSS-C
- BiSS-C + Sin/Cos

SSI / SSI + SinCos / BiSS-C / BiSS-C + SinCos

  • Singleturn resolution up to 19 bits
  • Incremental resolution 2048 SIN/COS
  • External diameter 58 mm
  • Conic shaft 1:10
  • Operating temperature range up to +100ºC
  • Protection class IP54 according to DIN EN 60529
  • Anti-rotation system through flexible flange or expanding coupling
  • Connection by cable (other cable lenghts available)
Ask an expert

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Plaease enter your email to download product 3D File.

        E-mail

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        If you need 3D step-file of your reference contact us and you will receive it within one working day.

          Name*

          E-mail*

          Phone

          Company

          Country

          Message

          HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
          protection in our Privacy Policy.

          I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

          We would like you to give us your consent to:

          Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

          Fields with a * are required.

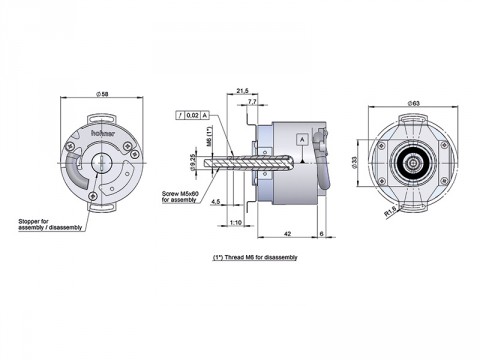

          TECHNICAL SPECIFICATIONS
          Materials Cover: Aluminium
          Housing: Aluminium
          Shaft: Stainless steel
          Bearings Ballraces
          Bearings lifetime 1×1010rev
          Housing fixation Expanding coupling 90.1100 (assembled)
          Flexible flange 90.1038 (assembled)
          Flexible flange 90.1027 (assembled)
          Permited misalignment ±0.5 mm axial (90.1100)
          ±0.5 mm axial, ±0.3 mm radial (90.1038, 90.1027)
          Maximum number of revolutions permitted mechanically 6000 rpm
          Protection against dust and splashes according to DIN EN 60529 IP54
          Rotor inertia moment ≤ 3×10-6 Kgm2
          Starting torque at 20ºC (68ºF) ≤ 0,02 Nm
          Maximum load permitted on axial shaft 40 N
          Maximum load permitted on radial shaft 60 N
          Weight 0,4 Kg
          Operating temperature range -20°C to +100°C
          Vibration according to DIN EN 60068-2-6 100 m/s2 (10Hz…2000Hz)
          Shock according to DIN EN 60068-2-27 1000 m/s2 (6ms)
          Consumption max. ≤ 90 mA
          Power supply 5 VDC ±10% / 4…30 VDC
          Linearity ± ½ LSB
          Helicoidal connection 2 meters cable (other cable lenghts or connector mounted at the end of the cable available on order) or 30 cm cable + connector D-Sub 15p
          SSI / BiSS INTERFACE
          Interface SSI BiSS
          Electronic output RS485 RS485
          Max. load capability / channel ±20 mA ±20 mA
          Resolution 9…19 bits
          21 bits – Upon request          		 9…19 bits
          21 bits – Upon request
          Code Binary
          Gray          		 Binary
          Clock frequency 50 kHz … 2 MHz 50 kHz … 10 MHz
          Protocol SSI BiSS-C



          INCREMENTAL OUTPUT
          SIN/COS
          Electronic output Differential 1 Vpp
          Signal offset 2,5 VDC
          Resolution 2048 ppr
          Cutoff frequency (-3 db) >500 kHz
