SERIE MRH

  1. Home
  2. Magnetic Encoders
  3. Incremental magnetic
  4. SERIE MRH
  • Serie MRH
  • Map Serie MRH

MAGNETIC INCREMENTAL ENCODER

  • Resolution up to 4096 pulses per turn
  • Non-contacting measuring system
  • Easy assembly
  • High protection class IP67
  • Compact dimensions
  • For applications under possible adverse ambient conditions (vibrations, humidity, dust, etc.)
Ask an expert

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Plaease enter your email to download product 3D File.

        E-mail

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        If you need 3D step-file of your reference contact us and you will receive it within one working day.

          Name*

          E-mail*

          Phone

          Company

          Country

          Message

          HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
          protection in our Privacy Policy.

          I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

          We would like you to give us your consent to:

          Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

          Fields with a * are required.

          MECHANICAL SPECIFICATIONS
          Materials Flange: Aluminium
          Support magnet: Stainless Steel
          Magnet: Elastomer
          Maximum number of revolutions permitted mechanically 6000 rpm
          Shaft diameter 9, 11, 14, 19, 24 and 28 mm

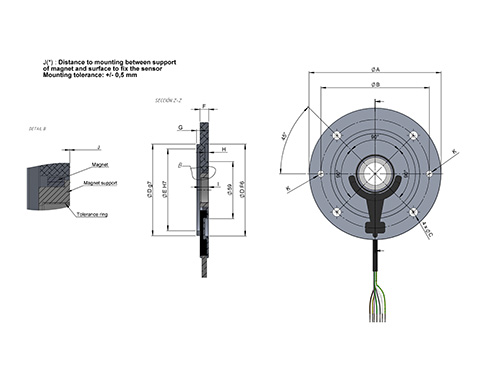

          Housing fixing 4 holes (see dimensions table ØB – ØC)
          Permitted misalignment ±0.5 mm axial, ±0.05 mm radial
          Protection against dust and splashes according to DIN EN 60529 IP67
          Weight aprox. Min. 0,25 Kg
          Max. 1,4 Kg
          Operating temperature range -20°C to +85°C
          Vibration according to DIN EN 60068-2-6 100 m/s² (10Hz…2000Hz)
          Shock according to DIN EN 60068-2-27 1000 m/s² (6ms)
          Radial connection 1 meter cable
          ELECTRICAL SPECIFICATIONS
          Measuring range 0…360°
          Resolution From 16 ppr to 4096 ppr (in steps of 16 pulses)
          Power supply 5…30 VDCC
          Consumption < 60 mA (without load)
          Reverse polarity protection of power supply Yes
          Insulation test 500 V
          Insulation resistance 200 MΩ
          Impulse sequence A 90° B Tolerance ± 25º el.
          Motor shaft tolerance According to IEC Dimensions



          Accessories

          Oldham-flex-clamp

          Measuring wheels

          Flexible anti-rotation system

          Support angles

          Union

          Connectors

          Coupling bells

          Alu-flex

          Poly-flex

          Cross-flex

          Lami-flex

          Bellow-flex

          Pre-assembled cables

          Pagu-flex

          Coupling flanges

          Spring-flex

          SKU: MRH-140-24-01-2048, MRH-160-24-01-2048, MRH-160-28-01-2048 Categories: , , , , ,
