SERIE MIE

  1. Home
  2. Magnetic Encoders
  3. Incremental magnetic
  4. SERIE MIE
3D

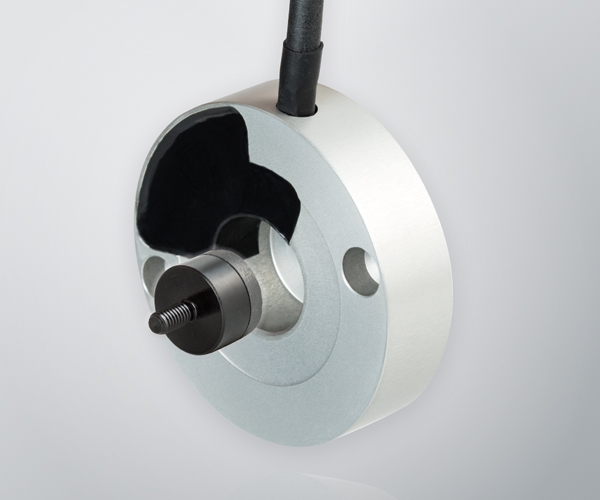

MAGNETIC INCREMENTAL ENCODER

  • Non-contacting measuring system
  • Easily assembling
  • 5…30 VDC Push-Pull not differential
  • High protection class IP67
  • Compact dimensions
  • For applications under possible adverse ambient conditions (vibrations, humidity, dust, etc.)
Ask an expert

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Plaease enter your email to download product 3D File.

        E-mail

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        If you need 3D step-file of your reference contact us and you will receive it within one working day.

          Name*

          E-mail*

          Phone

          Company

          Country

          Message

          HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
          protection in our Privacy Policy.

          I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

          We would like you to give us your consent to:

          Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

          Fields with a * are required.

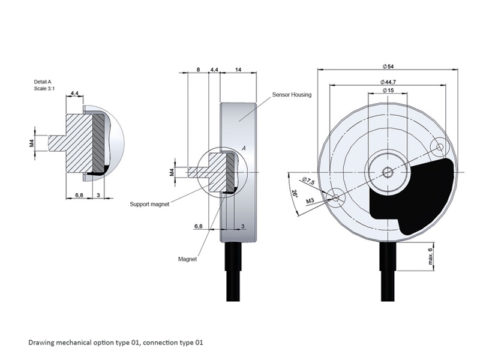

          MECHANICAL SPECIFICATIONS
          Materials Housing: Aluminium
          Shaft: PET (Polyethylene Terephthalate)
          Maximum number of revolutions permitted mechanically 12000 rpm
          Shaft diameter (support of magnet) 15 mm
          Shaft fixing M4
          Housing fixing 2 screws M3
          Permitted misalignment ±0.5mm axial, ±1mm radial
          Protection against dust and splashes according to DIN EN 60529 IP67
          Weight aprox. 0,3 Kg
          Operating temperature range -20ºC to +85ºC
          Vibration according to DIN EN 60068-2-6 100 m/s2 (10Hz…2000Hz)
          Shock accoording to DIN EN 60068-2-27 1000 m/s2 (6ms)
          Radial connection 2 meters cable (other cable lenghts available or connector mounted at the end of the cable, upon request)
          ELECTRICAL SPECIFICATIONS
          Measuring range 0…360°
          Resolution 1 ppr
          Power supply 5…30 VDCC
          Consumption < 20 mA (without load)
          Reverse polarity protection of
          power supply          		 Yes
          Magnet Ferrite
          Sensor Hall



          Accessories

          Coupling flanges

          Spring-flex

          Bellow-flex

          Lami-flex

          Poly-flex

          Pagu-flex

          Measuring wheels

          Cross-flex

          Alu-flex

          Coupling bells

          Support angles

          Flexible anti-rotation system

          Connectors

          Oldham-flex-clamp

          Union

          Pre-assembled cables

          SKU: MIE-0102-001, MIE-0101-001 Categories: , , , ,
