SINGLETURN ABSOLUTE ENCODER

  • Parallel
  • Singleturn resolution up to 13 bits
  • External diameter 58 mm
  • Blind Hollow Shaft Ø 10 or 12 mm
  • Protection class IP65 according to DIN EN 60529
  • Connection by cable (other cable length available) or industrial connector
Ask an expert

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Name*

        E-mail*

        Phone

        Company

        Country

        Message

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

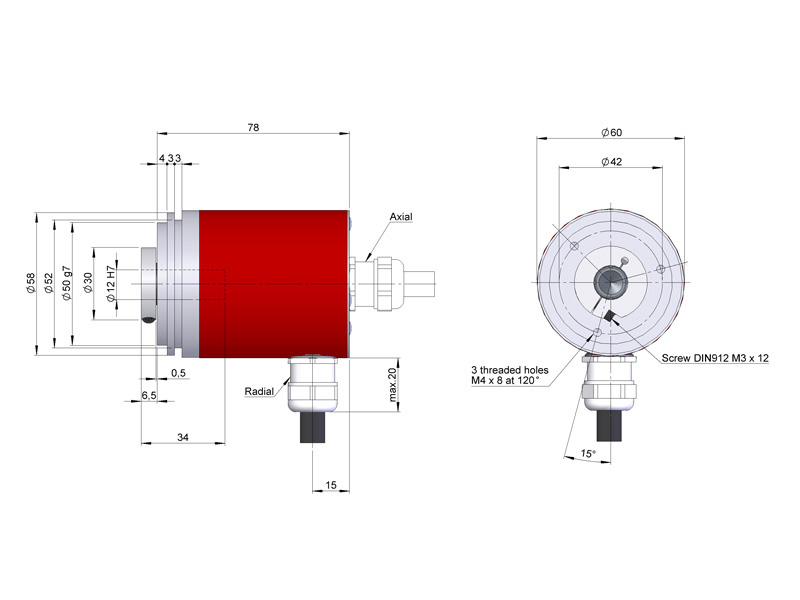

        MECHANICAL SPECIFICATIONS
        Materials Housing: Steel
        Flange: Aluminium
        Shaft: Stainless Steel
        Bearings Ballraces
        Bearings lifetime 1×1010 rev.
        Housing fixing Flexible flange
        Shaft fixing Clamp
        Permitted misalignment ± 0.5 mm axial, ±0.3 mm radial
        Blind hollow shaft diameter 10 or 12 mm
        Maximum number of revolutions permitted mechanically 6000 rpm
        Protection against dust and splashes according to DIN EN 60529 IP65
        Rotor inertia moment 30 gcm2
        Starting torque at 20ºC (68ºF) ≤ 0,02 Nm
        Maximum load permitted on axial shaft 40 N
        Maximum load permitted on radial shaft 60 N
        Weight aprox  0,4 kg
        Operating temperature range -10ºC to +70ºC
        Vibration 100 m/s2 (10Hz…2000Hz)
        Shock 1000 m/s2 (6ms)
        Axial or radial connection 2 meters cable or industrial connector (other cable lengths available on order)
        Female connector not included
        ELECTRICAL SPECIFICATION
        Interface Parallel
        Inputs Opto-coupled
        Code Binary
        Gray
        BCD
        Singleturn resolution up to 8192 points per turn (13 bits)
        Linearity ±1/2 LSB
        Parameters config. Direction

        Accessories

        Bellow-flex

        Spring-flex

        Pre-assembled cables

        Coupling flanges

        Oldham-flex-clamp

        Cross-flex

        Coupling bells

        Union

        Poly-flex

        Flexible anti-rotation system

        Connectors

        Alu-flex

        Measuring wheels

        Support angles

        Pagu-flex

        Lami-flex

        SKU: HS10-41320113-8192 HS10-41320313-2048 HS10-41320113R-8192 HS10-41320113RS-8192 Categories: , ,
