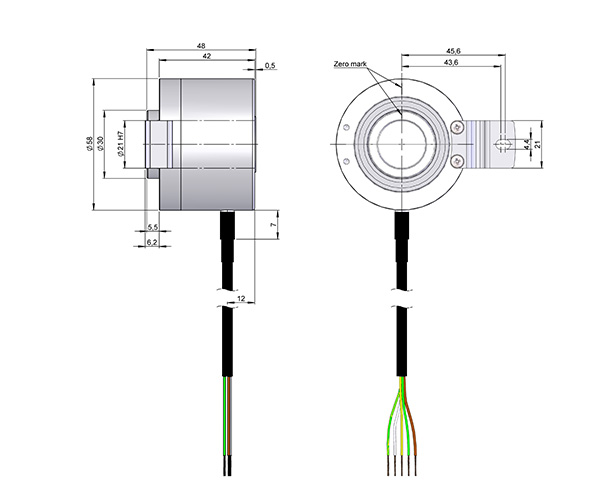

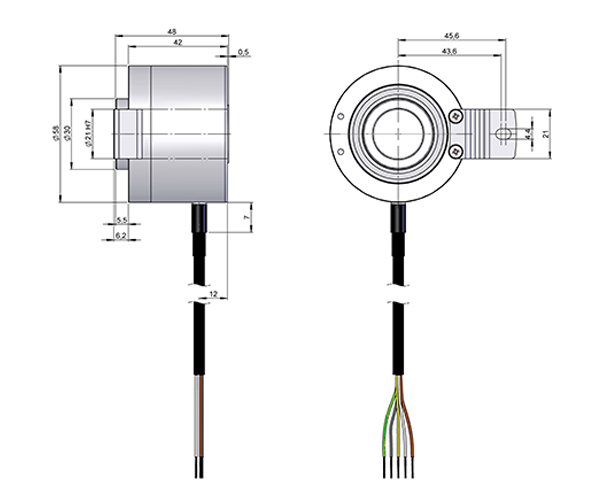

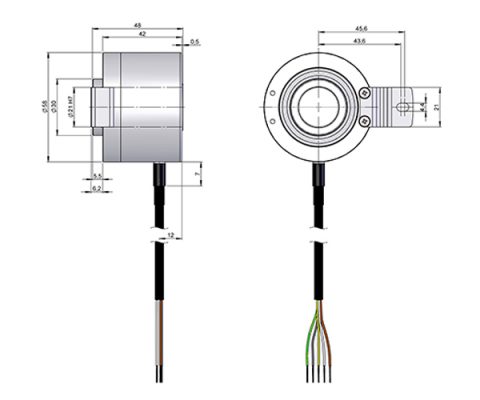

HOLLOW SHAFT ABSOLUTE SINGLETURN ENCODER

  • Analog output
  • Resolution up to 12 bits
  • External diameter 58 mm
  • Hollow shaft Ø 21 mm
  • Protection class IP54 according to DIN EN 60529
  • Anti-rotation system through flexible flange
  • Connection by cable (other cable length available)
Ask an expert

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Name*

        E-mail*

        Phone

        Company

        Country

        Message

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        MECHANICAL SPECIFICATIONS
        Materials Cover: Aluminium
        Housing: Aluminium
        Shaft: Stainless Steel
        Bearings Ballraces
        Bearings lifetime 1×1010 rev.
        Permitted misalignment ±0,5 mm axial, ±0,2 mm radial (90.1025)
        Shaft fixing Frontal setscrews
        Hollow shaft diameter 21 mm
        Maximum number of revolutions permitted mechanically 6000 rpm
        Protection against dust and splashes according to DIN EN 60529 IP54
        Rotor inertia moment 300 gcm2
        Starting torque at 20ºC (68ºF) ≤ 0,04 Nm
        Maximum load permitted on axial shaft 100 N
        Maximum load permitted on radial shaft 200 N
        Weight aprox. 0,3 Kg
        Operating temperature range -20°C to +85°C
        Vibration according to DIN EN 60068-2-6 100 m/s2 (10Hz…2000Hz)
        Shock according to DIN EN 60068-2-27 1000 m/s2 (6ms)
        Radial connection 2 meters cable (other cable lengths available on order)
        ELECTRICAL SPECIFICATIONS
        Interface Analog
        Electronic output 4..20mA, 0..5V 0..10V
        Power supply (VCC) 7-30V 12-30V
        Consumption ≤ 150 mA
        Resolution Up to 12 bits
        Range 360° electrical
        Max. Frequency 20 kHz
        Short circuit protection Yes
        Protection polarity inversion Yes

        Accessories

        Measuring wheels

        Cross-flex

        Flexible anti-rotation system

        Bellow-flex

        Oldham-flex-clamp

        Poly-flex

        Coupling bells

        Support angles

        Lami-flex

        Connectors

        Coupling flanges

        Spring-flex

        Pagu-flex

        Union

        Alu-flex

        Pre-assembled cables

        SKU: E58TS-ANA-12126-10360 E58TS-ANA-12126-12360 E58TS-ANA-22126-10360 E58TS-ANA-22126-12360 E58TS-ANA-12127-10360 E58TS-ANA-12127-12360 E58TS-ANA-22127-10360 E58TS-ANA-22127-12360 Categories: , , ,
