SERIE E36 CM SSI

  1. Home
  2. Multiturn Absolute Encoders
  3. SSI
  4. SERIE E36 CM SSI
3D
  • E36 CM

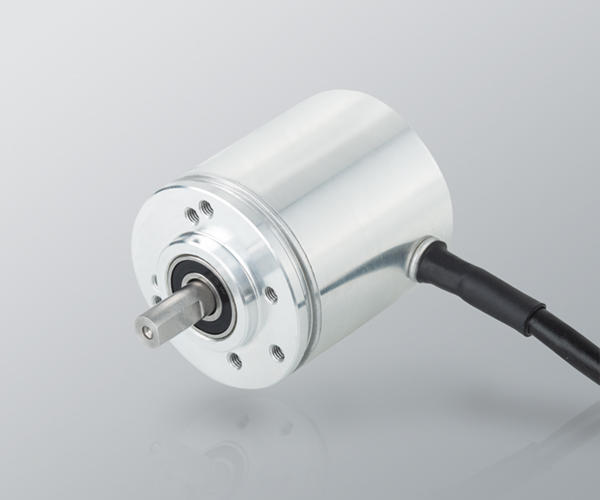

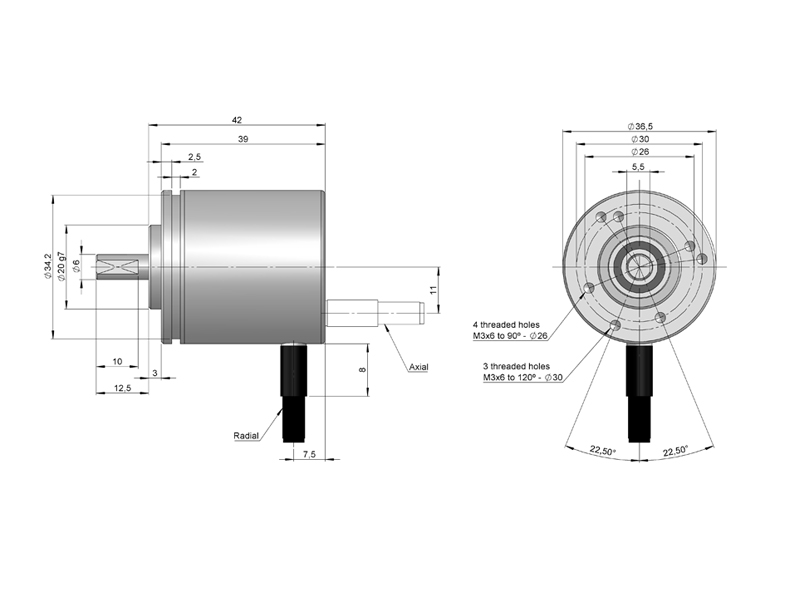

MINIATURE SOLID SHAFT ABSOLUTE MULTITURN ENCODER

  • Singleturn resolution up to 13 bits
  • Multiturn resolution up to 24 bits
  • Magnetic technology
  • External diameter 36,5 mm
  • Shaft Ø 6 mm
  • Protection class IP64 according to DIN EN 60529
  • Connection by cable (other cable length available)
