ON-AXIS BEARINGLESS ABSOLUTE SINGLETURN ENCODER

  • Analog output
  • Non-contacting measuring system
  • Resolution up to 12 bits
  • Easy assembly
  • High protection class IP65
  • Compact dimensions
  • Connection by cable (other cable length available)
Ask an expert

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Plaease enter your email to download product 3D File.

        E-mail

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        If you need 3D step-file of your reference contact us and you will receive it within one working day.

          Name*

          E-mail*

          Phone

          Company

          Country

          Message

          HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
          protection in our Privacy Policy.

          I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

          We would like you to give us your consent to:

          Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

          Fields with a * are required.

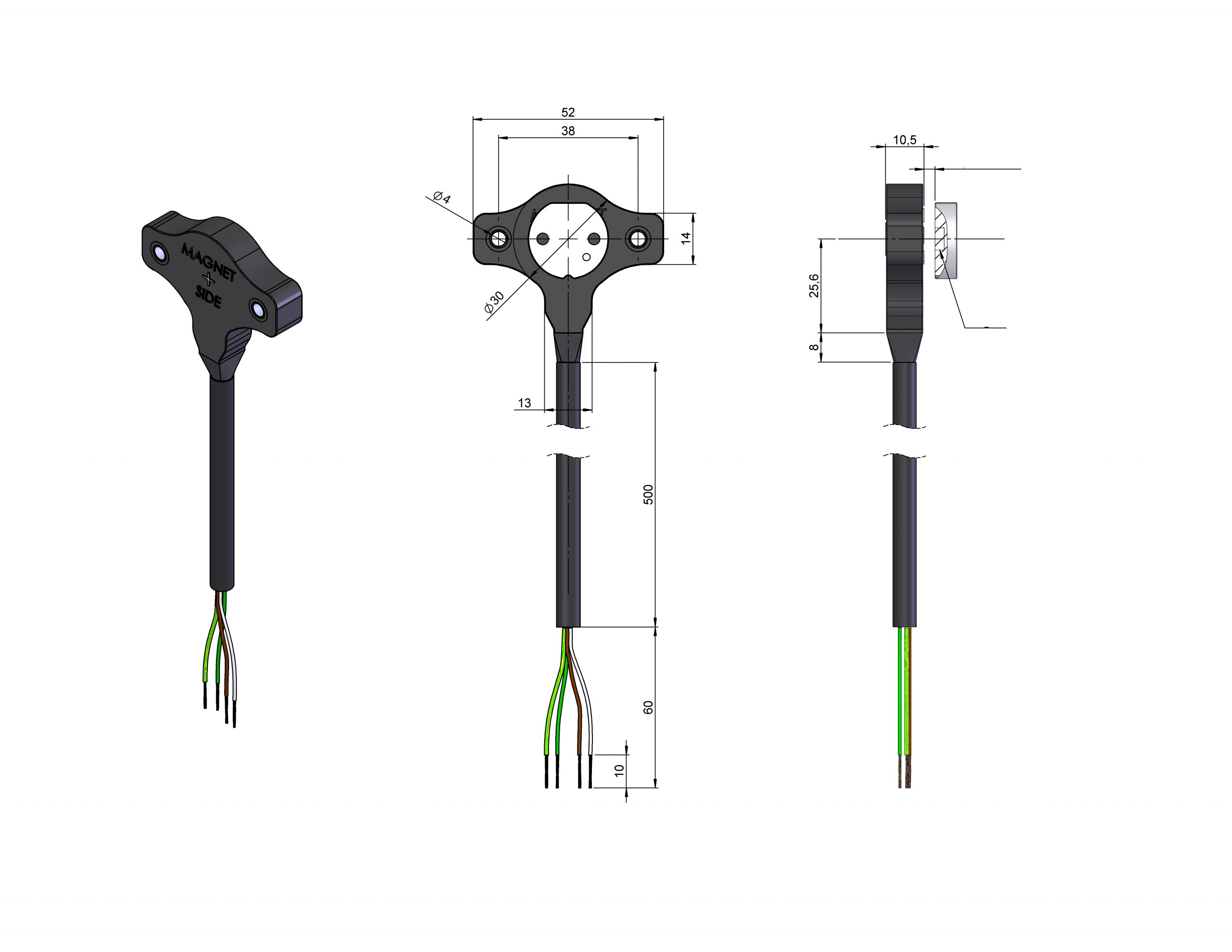

          MECHANICAL SPECIFICATIONS
          Materials Housing: Polyamide hot melt resin
          Magnet: Neodymium
          Maximum number of revolutions permitted mechanically 3000 rpm
          Permitted gap 0.5 mm to 2.5 mm (Magnet option type 2)
          0.5 mm to 5.0 mm (Magnet option type 3, 4)
          Admissible max. misalignment radial 0.2 mm
          Protection against dust and splashes according to DIN EN 60529 IP65 (IP67 available, upon request)
          Weight aprox. 0,05 Kg
          Operating temperature range -30°C to +85°C
          Vibration according to DIN EN 60068-2-6 ≤ 200 m/s² (55Hz…2000Hz)
          Shock according to DIN EN 60068-2-27 ≤ 2000 m/s² (6ms)
          Radial connection 50 cm cable
          ELECTRICAL SPECIFICATIONS
          Interface Analog
          Electronic output 0..20mA , 4..20mA, 0..5V, 0..10V
          Power supply (VCC) 12-18V, 20-28V, 15-30V
          Consumption ≤ 30 mA
          Resolution Up to 12 bits
          Range 180° and 360° electrical (*)
          Short circuit protection Yes
          Protection polarity inversion Yes

          (*) Measuring range can be factory configured from 18° to 360°.
