  4. SERIE 59 Sin/Cos
3D

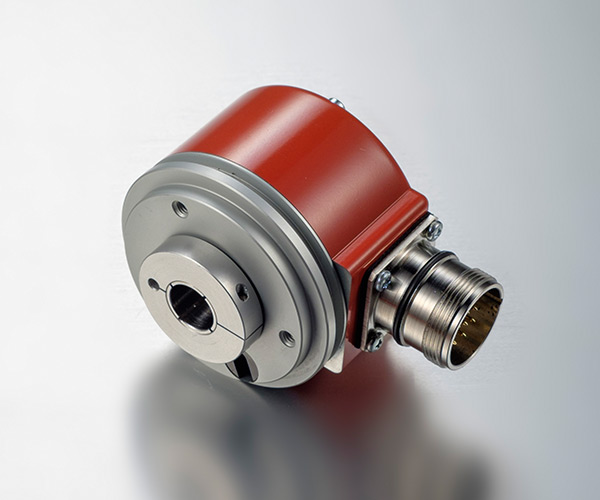

HOLLOW SHAFT INCREMENTAL ENCODER FOR INDUSTRIAL APPLICATIONS

  • Resolution 2048 pulses per turn
  • Fixed to shaft with front or rear clamp
  • External diameter 58 mm
  • Hollow shaft 10, 12 or 14 mm
  • Protection class IP65 according to DIN EN 60529
  • Anti-rotation system using elastic flange, centre pin or anti-turn stick
  • Connection by cable (other cable lenght available) or industrial connector M12 or M23
Ask an expert

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Plaease enter your email to download product 3D File.

        E-mail

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        If you need 3D step-file of your reference contact us and you will receive it within one working day.

          Name*

          E-mail*

          Phone

          Company

          Country

          Message

          HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
          protection in our Privacy Policy.

          I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

          We would like you to give us your consent to:

          Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

          Fields with a * are required.

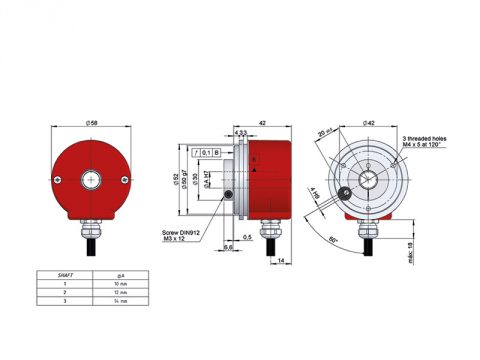

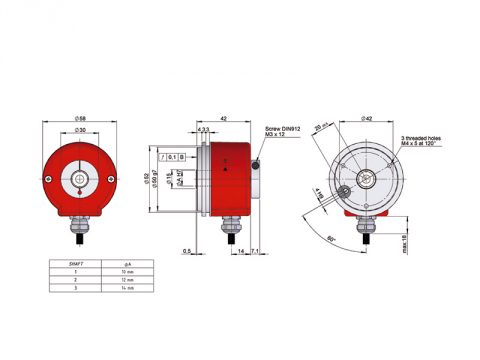

          MECHANICAL SPECIFICATIONS
          Materials Housing: Aluminium
          Flange: Aluminium
          Shaft: Treated aluminium / Stainless Steel
          Bearings Ballraces
          Bearings lifetime 1×1010 rev.
          Housing fixing Flexible flange or Anti-turn stick
          (not included)
          Permitted misalignment ±0.5 mm axial, ±0.3 mm radial (90.1014, 90.1024)
          Shaft fixing Front or Rear clamp
          Hollow shaft diameter 10, 12 or 14 mm
          Maximum number of revolutions permitted mechanically 6000 rpm
          Protection against dust and splashes according to DIN EN 60529 IP65
          Rotor inertia moment 30 gcm²
          Starting torque at 20°C (68°F) ≤ 0,02 Nm
          Maximum load permitted on axial shaft 40 N
          Maximum load permitted on radial shaft 80 N
          Weight aprox. 0,5 Kg
          Operating temperature range -20°C to +80°C
          Vibration according to DIN EN 60068-2-6 100 m/s2 (10Hz…2000Hz)
          Shock according to DIN EN 60068-2-27 1000 m/s2 (6ms)
          Number of pulses per turn 2.048
          Axial or radial connection 2 meters cable or industrial connector M12 or M23
          (other cable lengths available on order)
          Female connector not included



          OUTPUT SIGNALS
          OUTPUT CIRCUIT Sine-wave
          Power supply 5 VDC ±10%
          Output voltage 5 VDC
          Consumption Tipical: 40 mA
          Max: 90 mA
          Lenght of cable allowed 50 m
          Signal type SIN/COS, 1Vpp
          Output signal level SIN/COS 0.6 to 1.2 Vpp
          Signal offset 2.5 VDC
          Reference 0.2 to 1 VDC
          Frequency 200 kHz
          Protection polarity inversion Not permanent
          Cosine leads (90° electric) Sine, view from the shaft, shaft rotating clockwise
