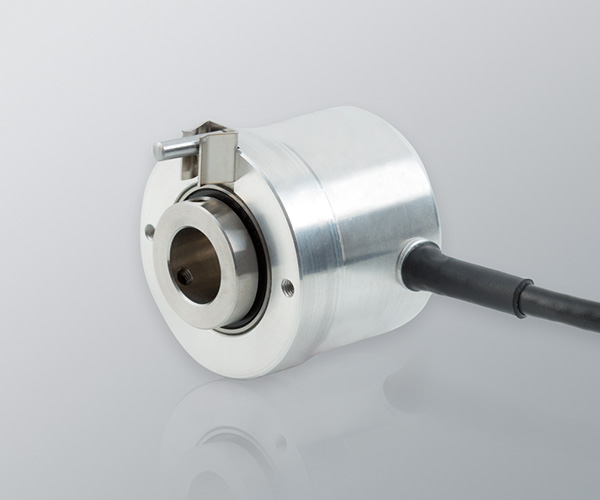

BLIND HOLLOW SHAFT MAGNETIC INCREMENTAL ENCODER FOR INDUSTRIAL APPLICATIONS

  • Resolution up to 512 pulses per turn
  • External diameter 36,5 mm
  • Blind hollow shaft Ø 10 or 12 mm
  • Protection IP65 according to DIN EN 60529
  • Anti-rotation system through pin torque support
  • Connection by cable (other cable lenght available)
Ask an expert

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Plaease enter your email to download product 3D File.

        E-mail

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        If you need 3D step-file of your reference contact us and you will receive it within one working day.

          Name*

          E-mail*

          Phone

          Company

          Country

          Message

          HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
          protection in our Privacy Policy.

          I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

          We would like you to give us your consent to:

          Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

          Fields with a * are required.

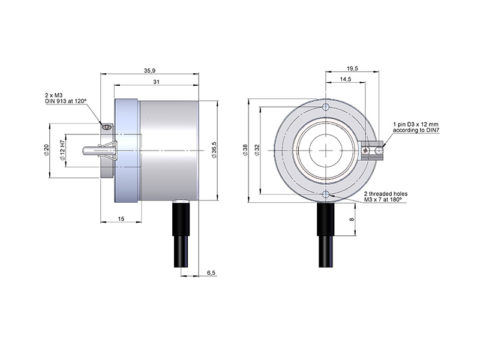

          MECHANICAL SPECIFICATIONS
          Materials Cover: Aluminium
          Housing: Aluminium
          Shaft: Brass
          Bearings Ballraces
          Bearings lifetime 1×1010 rev.
          Housing fixing Anti-rotation pin (included)
          Blind hollow shaft diameter 10 or 12 mm
          Maximum number of revolutions permitted mechanically 6000 rpm
          Protection against dust and splashes according to DIN EN 60529 IP65
          Rotor inertia moment 20 gcm2
          Starting torque at 20ºC (68ºF) ≤ 2 Ncm
          Maximum load permitted on axial shaft 40 N
          Maximum load permitted on radial shaft 60 N
          Weight aprox. 0,1 Kg
          Operating temperature range -20°C to +85°C
          Vibration according to DIN EN 60068-2-6 100 m/s2 (10Hz…2000Hz)
          Shock according to DIN EN 60068-2-27 1000 m/s2 (6ms)
          Number of pulses per turn 32, 64, 128, 256, 512
          Axial or radial connection 2 meters cable (other cable lenghts available or connector mounted at the end of the cable, upon request)
          OUTPUT SIGNALS
          OUTPUT CIRCUIT Push-Pull
          Differential          		 RS422 (TTL compatible)
          Power supply 11…30 VDC 5 VDC ±5%
          Output voltage 11…30 VDC 5 VDC
          Consumption Tipical: 45 mA
          Max: 150 mA          		 Tipical: 70 mA
          Max: 150 mA
          Max. load capability / channel ±30 mA ±20 mA
          Lenght of cable allowed 100 m 1200 m
          “Low” signal level VOL < 2.5 VDC VOL < 0.5 VDC
          “High” signal level VOH > VCC – 3 VDC VOH > 2.5 VDC
          Frequency 200 kHz 300 kHz
          Short circuit protection Yes Yes
          Protection polarity inversion Yes No
          Channel A leads (90° electric) channel B, view from the shaft, shaft rotating clockwise

          Accessories

          Connectors

          Poly-flex

          Union

          Coupling bells

          Lami-flex

          Spring-flex

          Alu-flex

          Oldham-flex-clamp

          Flexible anti-rotation system

          Support angles

          Pagu-flex

          Pre-assembled cables

          Coupling flanges

          Bellow-flex

          Cross-flex

          Measuring wheels

          SKU: 22M-22721-512 Categories: , , , , ,
