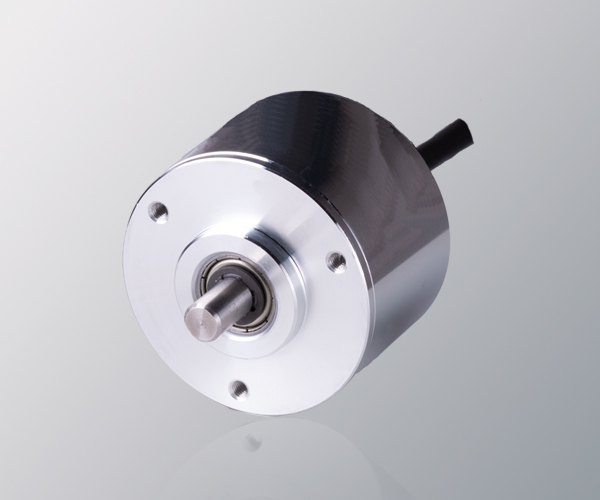

INCREMENTAL SOLID SHAFT ENCODER COST OPTIMIZED FOR INDUSTRIAL APPLICATIONS

  • Resolution up to 500 pulses per turn
  • External diameter 40 mm
  • Shaft Ø 6 mm
  • Protection class IP41 according to DIN EN 60529
  • Connection by cable (other cable lenght available)
Ask an expert

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Plaease enter your email to download product 3D File.

        E-mail

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        If you need 3D step-file of your reference contact us and you will receive it within one working day.

          Name*

          E-mail*

          Phone

          Company

          Country

          Message

          HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
          protection in our Privacy Policy.

          I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

          We would like you to give us your consent to:

          Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

          Fields with a * are required.

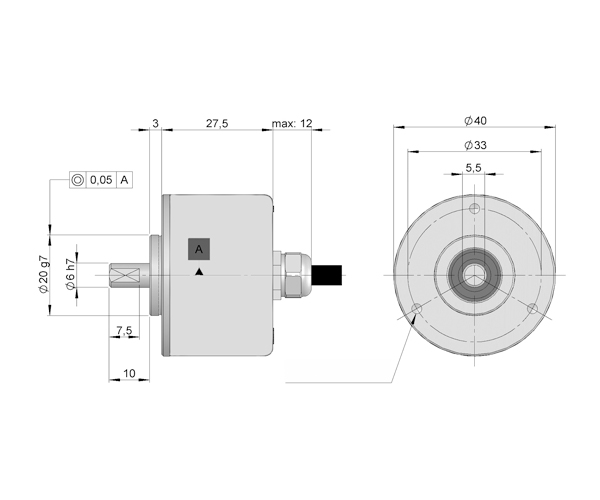

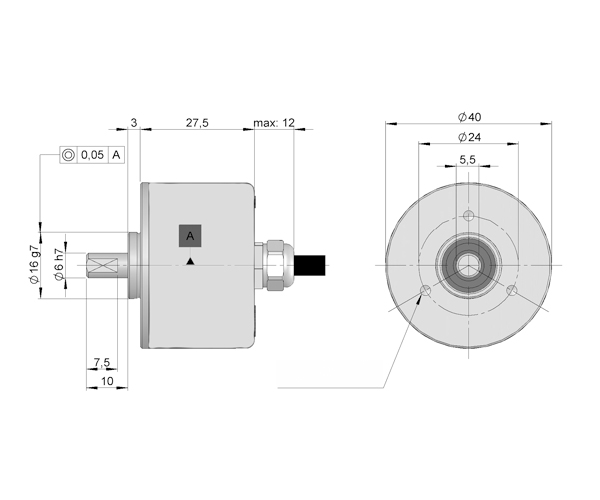

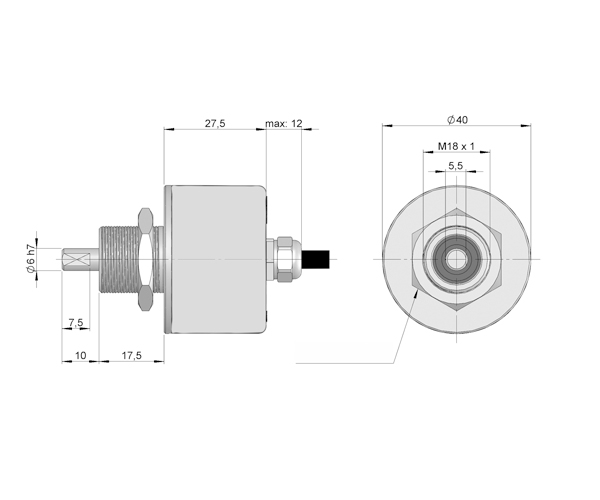

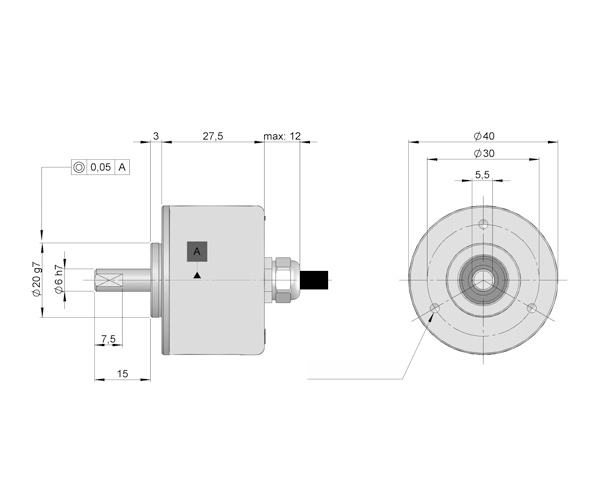

          MECHANICAL SPECIFICATIONS
          Materials Cover: Aluminium
          Housing: Aluminium
          Shaft: Stainless Steel
          Bearings Ballraces
          Bearings lifetime 1×1010 rev.
          Maximum number of revolutions permitted mechanically 5000 rpm
          protection against dust and splashes according to DIN EN 60529 IP41
          Rotor inertia moment 10 gcm2
          Starting torque at 20ºC (68ºF) ≤ 0,004 Nm
          Maximum load permitted on axial shaft 5 N
          Maximum load permitted on radial shaft 5 N
          Weight aprox. 0,2 Kg
          Operating temperature range -20ºC to +60ºC.
          Vibration 100 m/s2 (10Hz…2000Hz)
          Shock 1000 m/s2 (6ms)
          Maximum pulses per turn 500
          Axial connection 1 meter cable (other cable lenghts available or connector mounted at the end of the cable, upon request)
          OUTPUT SIGNALS
          OUTPUT CIRCUIT NPN Open Collector Push-Pull RS422
          (TTL compatible)          		 Push-Pull Differential
          Power supply 11…30 VDC 11…30 VDC 5 VDC ±10% 11…30 VDC
          Output voltage 11…30 VDC 11…30 VDC 5 VDC 11…30 VDC
          Consumption 40 mA Tipical: 45 mA
          Max: 150 mA          		 Tipical: 70 mA
          Max: 150 mA          		 Tipical: 45 mA
          Max: 150 mA
          Max. load capability / channel 40 mA ±30 mA ±20 mA ±30 mA
          Lenght of cable allowed 50 m (24 VDC) 50 m 1200 m 100 m
          “Low” signal level VOL < 0.4 VDC (24 VDC) VOL < 2.5 VDC VOL < 0.5 VDC VOL < 2.5 VDC
          “High” signal level VOH > 22 VDC (24 VDC) VOH > Vcc – 3 VDC VOH > 2.5 VDC VOH > VCC – 3 VDC
          Frequency 100 kHz 200 kHz 300 kHz 200 kHz
          Short circuit protection Not permanent Yes Yes Yes
          Protection polarity inversion Yes Yes No Yes
          Channel B leads (90° electric) channel A, view from the shaft, shaft rotating clockwise
