SERIE 20

  1. Home
  2. .Applications
  3. Saws and shears
  4. SERIE 20
3D

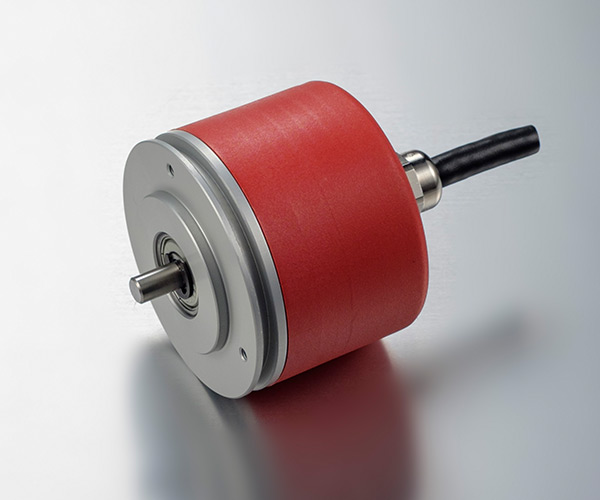

INCREMENTAL SOLID SHAFT ENCODER COST OPTIMIZED FOR INDUSTRIAL APPLICATIONS

  • Resolution available up to less than 1000 pulses per turn
  • External diameter 58 mm
  • Shaft Ø 6 mm
  • Protection class IP54 according to DIN EN 60529

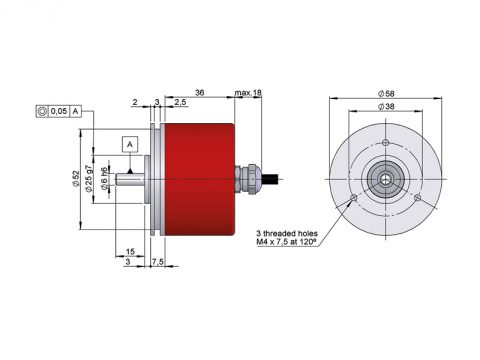

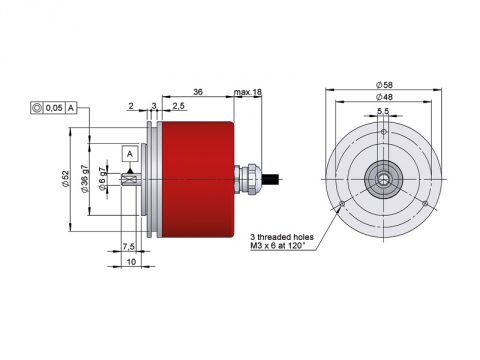

  • Different flanges available
  • Connection by cable (other cable lenght available) or industrial connector
Ask an expert

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Plaease enter your email to download product 3D File.

        E-mail

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        If you need 3D step-file of your reference contact us and you will receive it within one working day.

          Name*

          E-mail*

          Phone

          Company

          Country

          Message

          HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
          protection in our Privacy Policy.

          I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

          We would like you to give us your consent to:

          Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

          Fields with a * are required.

          MECHANICAL SPECIFICATIONS
          Materials Cover: Plastic
          Housing: Aluminium
          Shaft: Stainless Steel
          Bearings Ballraces
          Bearings lifetime 1×1010 rev.
          Maximum number of revolutions permitted mechanically 6000 rpm
          Protection against dust and splashes according to DIN EN 60529 IP54
          Rotor inertia moment 10 gcm2
          Starting torque at 20ºC (68ºF) ≤ 0,005 Nm
          Maximum load permitted on axial shaft 20 N
          Maximum load permitted on radial shaft 30 N
          Weight aprox. 0,3 Kg
          Operating temperature range -20ºC to +60ºC.
          Vibration 100 m/s2 (10Hz…2000Hz)
          Shock 1000 m/s2 (6ms)
          Maximum pulses per turn 987
          Axial connection 2 meters cable or industrial connector
          (other cable lenghts available on order)
          Female connector not included
          OUTPUT SIGNALS
          OUTPUT CIRCUIT NPN Open Collector Push-Pull Line Driver
          (TTL compatible)
          Power supply 11…30 VDC 11…30 VDC 5 VDC ±10%
          Output voltage 11…30 VDC 11…30 VDC 5 VDC
          Consumption 40 mA Tipical: 45 mA
          Max: 150 mA          		 Tipical: 120 mA
          Max: 150 mA
          Max. load capability / channel 40 mA ±30 mA ±40 mA
          Lenght of cable allowed 50 m (24 VDC) 50 m 100 m
          “Low” signal level VOL < 0.4 VDC (24 VDC) VOL < 2.5 VDC VOL < 0.2 VDC
          “High” signal level VOH > 22 VDC (24 VDC) VOH > VCC – 3 VDC VOH > 2.4 VDC
          Frequency 100 kHz 200 kHz 100 kHz
          Short circuit protection Not permanent Yes Yes
          Protection polarity inversion Yes Yes No
          Channel B leads (90° electric) channel A, view from the shaft, shaft rotating clockwise
