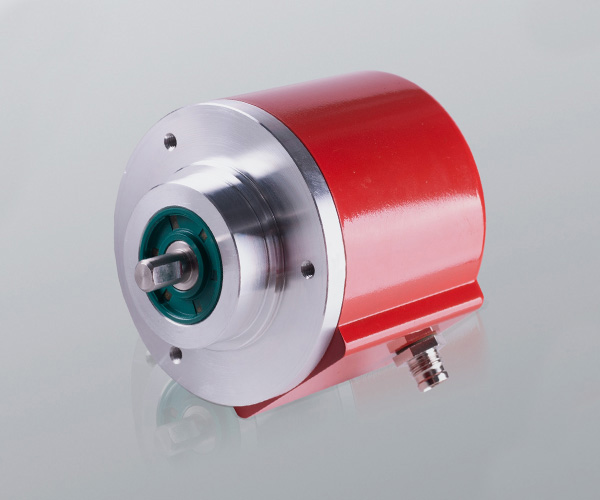

  4. POTENTIOMETER POT10

SOLID SHAFT ANGULAR SENSOR FOR INDUSTRIAL APPLICATIONS

  • External diameter 58 mm
  • Shaft Ø 6 or 10mm
  • Protection class IP65 according to DIN 60529
  • Measuring range 180º/360º/1800º/3600º/7200º
  • Current, voltage or resistance output
  • Connection by cable (other cable length available) or industrial connector M8
  • Measuring system using accuracy potenciometer
Ask an expert

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Name*

        E-mail*

        Phone

        Company

        Country

        Message

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        MECHANICAL SPECIFICATIONS
        Materials Cover: Zamak
        Housing: Aluminium
        Shaft: Stainless Steel
        Bearings Ballraces
        Bearings lifetime 1×1010 rev.
        Maximum number of revolutions permitted mechanically 50 rpm (180°, 1800°)
        100 rpm (360°, 3600°)
        200 rpm (7200°)
        Protection against dust and splashes according to DIN 60529 IP65
        Starting torque at 20ºC (68ºF) ≤ 0,02 Nm
        Maximum load permitted on axial shaft 40 N
        Maximum load permitted on radial shaft 60 N
        Output Potentiometer, Analog output
        Weight aprox 400 g
        Operating temperature range -20ºC to +85ºC
        Direction Clockwise (CW)
        Axial or radial connection 2 meters cable or industrial connector M8 (other cable lengths available on order)
        Female connector not included
        ELECTRICAL SPECIFICATIONS
        Reference code 1 kΩ or 10 kΩ
        1 turn
        1 or 2        		 1 kΩ or 10 kΩ
        10 turns
        1 or 2        		 0..10v
        3        		 4..20mA
        4
        Voltage supply 30 VDC max 30 VDC max 15…30 VDC 15…30 VDC
        Accuracy ± 15% ± 5% ± 0,3% ± 0,3%
        Linearity ± 2% ± 0,25% ± 0,5% ± 0,5%
        Thermal coefficient ± 50ppm/C° ± 50ppm/C° ± 50ppm/C° ± 50ppm/C°
        Load 1w max 2w max 5 kΩ min 600 kΩ min

        Accessories

        Measuring wheels

        Coupling flanges

        Coupling bells

        Flexible anti-rotation system

        Support angles

        Pagu-flex

        Oldham-flex-clamp

        Poly-flex

        Connectors

        Alu-flex

        Spring-flex

        Union

        Cross-flex

        Bellow-flex

        Lami-flex

        Pre-assembled cables

        SKU: POT10-1111-180 POT10-1123-1800 POT10-1134-7200 POT10-2112-3600 POT10-2123-1800 POT10-2132-7200 POT10-1121-180 POT10-1114-1800 POT10-1132-3600 POT10-2114-180 POT10-2124-360 POT10-2133-1800 Categories: ,
