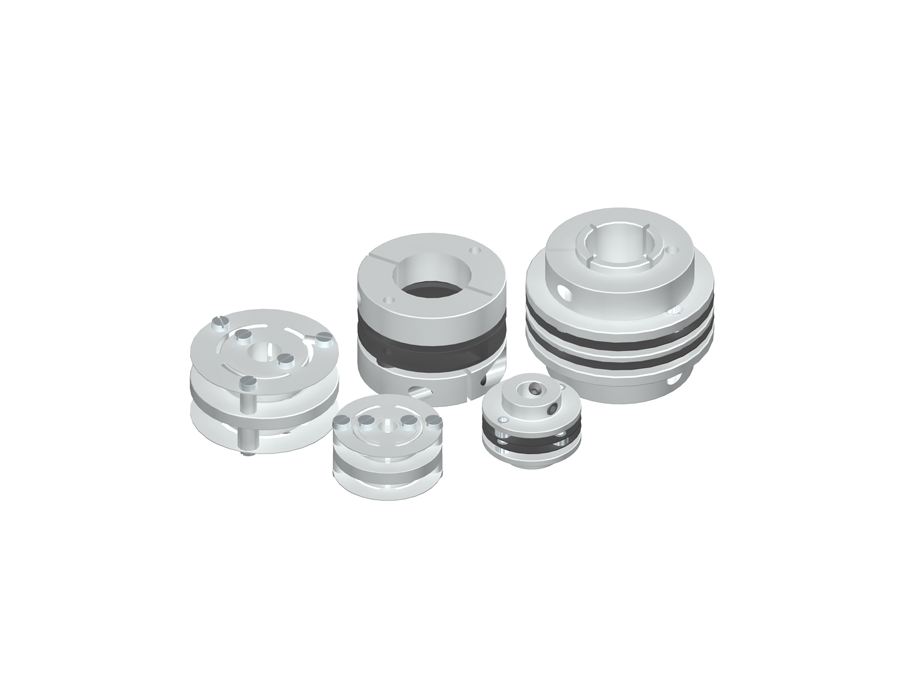

Lami-flex

FLEXIBLE SHEET COUPLINGS

Suitable for high speed
High flexibility
No cinematic errors in transmission
High torsional rigidity

Download Datasheet / Manual

Datasheet

Download 3D STEP File

3D STEP Files

If you need 3D step-file of your reference contact us and you will receive it within one working day.

TECHNICAL SPECIFICATIONS
	Torque	Clamping Torque	Max. Speed	Admissible max. misalignment			Torsion spring stiffness	Radial spring stiffness	Weight	Inertia
	Torque	Clamping Torque	Max. Speed	Angular	Axial	Radial	Torsion spring stiffness	Radial spring stiffness	Weight	Inertia
LFP 2014	50 Ncm	60 Ncm	10.000 rpm	±2,5 degree	±0,3 mm	– mm	100 Nm/rad	– N/mm	5 g	2,6 gcm²
LFP 2016	50 Ncm	60 Ncm	10.000 rpm	±3 degree	±0,4 mm	±0,2 mm	45 Nm/rad	125 N/mm	6 g	2,8 gcm²
LFA 2213	20 Ncm	20 Ncm	10.000 rpm	±2 degree	±0,3 mm	±0,3 mm	14 Nm/rad	3 N/mm	9,5 g	3,2 gcm²
LFA 2519	40 Ncm	65 Ncm	12.000 rpm	±2,5 degree	±0,4 mm	±0,25 mm	22 Nm/rad	60 N/mm	16 g	13,5 gcm²
LFA 2525	40 Ncm	65 Ncm	12.000 rpm	±2,5 degree	±0,4 mm	±0,25 mm	22 Nm/rad	60 N/mm	18 g	15 gcm²
LFA 3019	80 Ncm	80 Ncm	12.000 rpm	±3 degree	±0,4 mm	±0,4 mm	150 Nm/rad	6 N/mm	16 g	19 gcm²
LFA 3022	60 Ncm	80 Ncm	12.000 rpm	±2,5 degree	±0,4 mm	±0,3 mm	30 Nm/rad	40 N/mm	30 g	35 gcm²
LFA 3027	60 Ncm	80 Ncm	12.000 rpm	±2,5 degree	±0,4 mm	±0,3 mm	30 Nm/rad	40 N/mm	32 g	37 gcm²
LFA 3437	6,3 Ncm	150 Ncm	18.000 rpm	±2 degree	±0,5 mm	0,2 mm	2500 Nm/rad	100 N/mm	75 g	130 gcm²
LFA 3832	400 Ncm	60 Ncm	8.000 rpm	±2,5 degree	±0,3 mm	±0,3 mm	250 Nm/rad	220 N/mm	53 g	82 gcm²
LFA 3850	400 Ncm	60 Ncm	8.000 rpm	±2,5 degree	±0,8 mm	±0,8 mm	250 Nm/rad	12 N/mm	63 g	106 gcm²
LFA 4447	15 Ncm	350 Ncm	14.000 rpm	2 degree	±0,6 mm	0,25 mm	6400 Nm/rad	180 N/mm	156 g	470 gcm²
