ENCOMETER EM10

  1. Home
  2. Linear Measurement
  3. Draw Wire Sensor Systems
  4. ENCOMETER EM10
3D

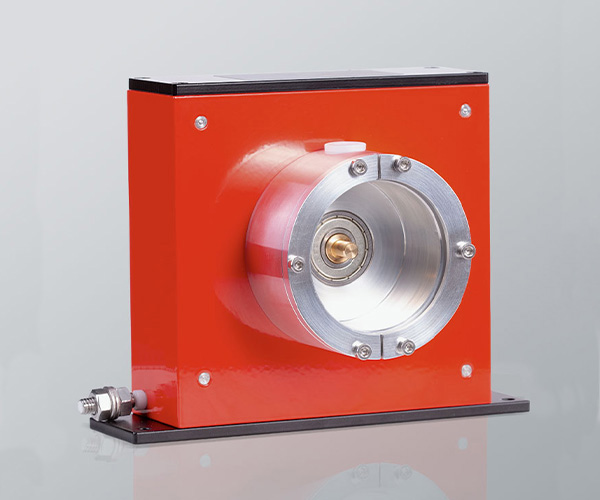

EXTENDIBLE CABLE MEASUREMENT SYSTEM

  • Measuring linear distances up to 10 meters
  • Any mounting position possible
  • Protection class IP51 according to DIN EN 60529
  • Anodised and pressurized options available
  • The drum shaft can drive any kind of rotary encoder (encoder, potentiometer, …)
  • Stainless steel extendible cable Ø 0,61 AISI316
Ask an expert

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Plaease enter your email to download product 3D File.

        E-mail

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        If you need 3D step-file of your reference contact us and you will receive it within one working day.

          Name*

          E-mail*

          Phone

          Company

          Country

          Message

          HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
          protection in our Privacy Policy.

          I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

          We would like you to give us your consent to:

          Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

          Fields with a * are required.

          TECHNICAL SPECIFICATIONS
          Travel 300 mm ±0,06 / per turn
          Cable (*) Ø 0,61 stainless steel AISI316
          (structure 19 x 7 + 0)
          Measurement range, up to (mm) 10000
          Maximum cable extension (mm) 10010
          Minimum cable static tension 6 N
          Maximum cable static tension 13 N
          Maximum extension acceleration 25 m/s2
          Maximum recovery accelaration 12 m/s2
          Maximum speed 0,75 m/s
          Protection against dust and splashes according to DIN EN 60529 IP51

          (*) Other types of cables are possible on special order

          Accessories

          Pre-assembled cables

          Pagu-flex

          Coupling bells

          Lami-flex

          Support angles

          Coupling flanges

          Union

          Oldham-flex-clamp

          Flexible anti-rotation system

          Poly-flex

          Connectors

          Measuring wheels

          Alu-flex

          Bellow-flex

          Spring-flex

          Cross-flex
