  4. Cross-flex

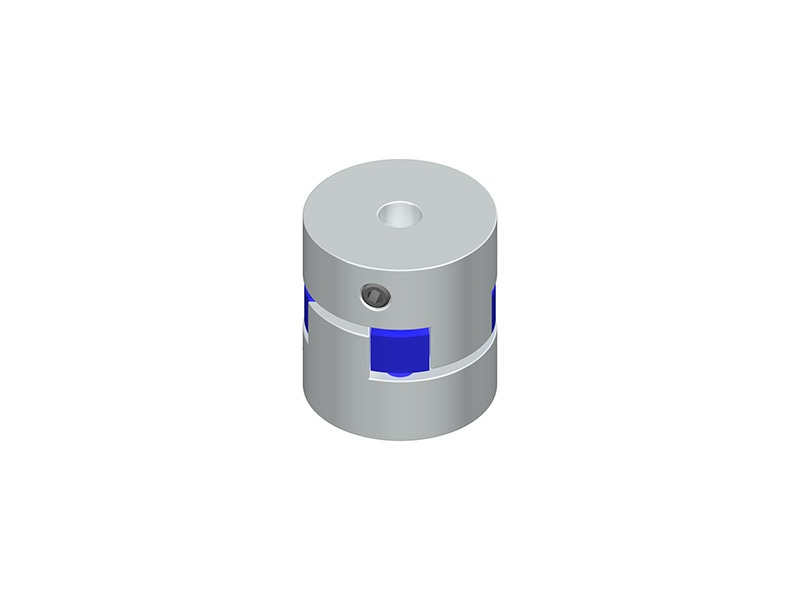

SPIDER COUPLING

  • Free of cinematic errors in transmission
  • Replaceable disc
  • Elevated torque transmission
  • Admits few misalignments
Ask an expert

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Name*

        E-mail*

        Phone

        Company

        Country

        Message

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        TECHNICAL SPECIFICATIONS
        Torque max. Clamping Torque max. Max. Speed Admissible max. misalignment Hardness Max. Torsion Torque Weight Inertia
        Angular Axial Radial
        CFP 80 800 Ncm 150 Ncm 19.000 rpm ±1,3 degree ±1 mm ±0,22 mm 80 (blue) 10º 34 g 30 gcm2
        CFP 92 1500 Ncm 150 Ncm 19.000 rpm ±1,3 degree ±1 mm ±0,22 mm 92 (white) 10º 34 g 30 gcm2
        CFP 98 2500 Ncm 150 Ncm 19.000 rpm ±1,3 degree ±1 mm ±0,22 mm 98 (red) 10º 34 g 30 gcm2
