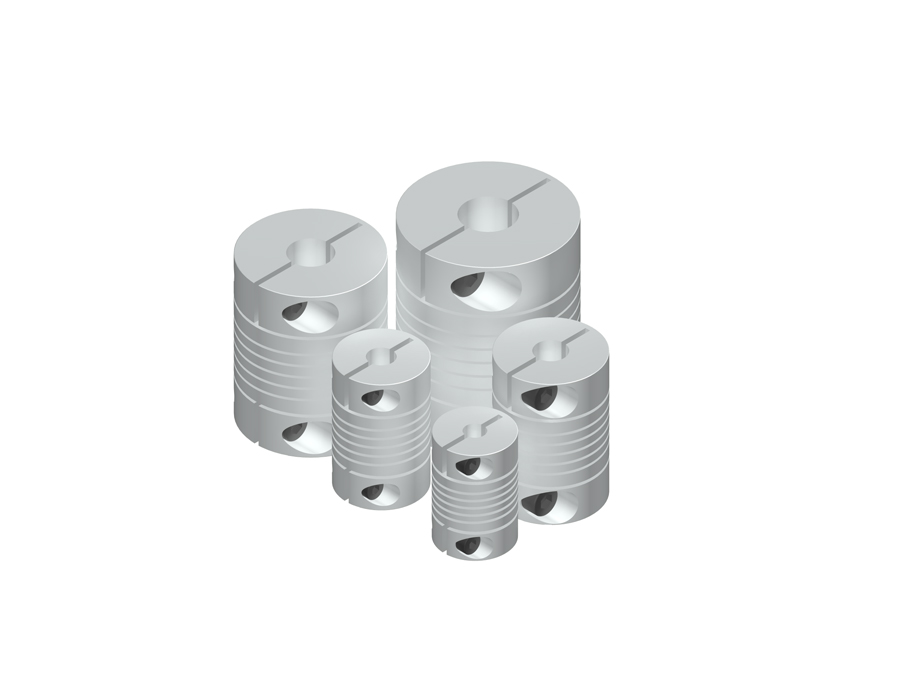

ALUMINIUM GROOVED FLEXIBLE COUPLINGS OR STAINLESS STEEL

  • Without free-plays. They do not produce any speed variations in the transmission
  • High torsional rigidity
  • Available with setscrews and built-in clamps
  • Resistant to oils and chemical products
  • Mechanical protection against excessive torque
