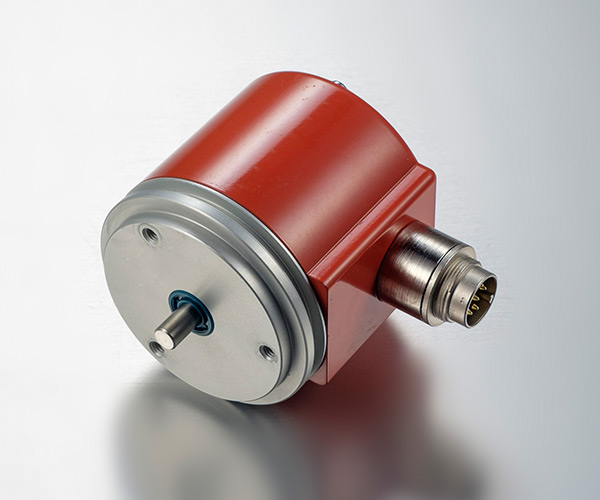

INCREMENTAL SOLID SHAFT ENCODER FOR INDUSTRIAL APPLICATIONS

  • Resolution 1024, 2048 and 2500 pulses per turn
  • External diameter 58 mm
  • Shaft Ø 6 mm
  • Fixation through synchro flange
  • Protection class IP65 according to DIN EN 60529
  • Connection by cable (other cable lenght available) or industrial connector M12, M23
