SERIE SMRS64S

  1. Home
  2. Encoder assoluti monogiro
  3. Sin/Cos
  4. SERIE SMRS64S
3D

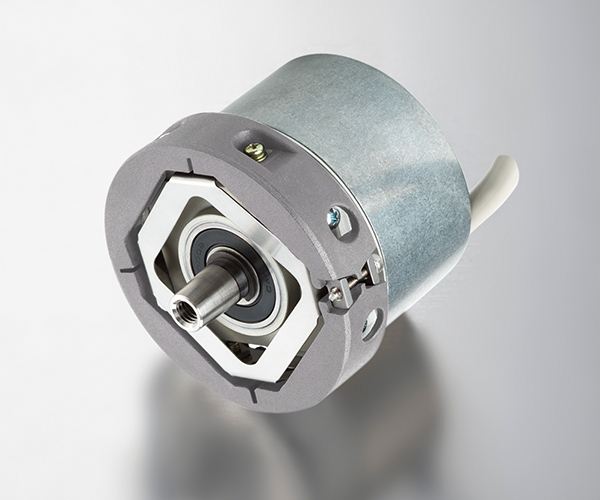

ENCODER ASSOLUTO MONOGIRO E INCREMENTALE
- SIN/COS + SIN/COS

SIN/COS + SIN/COS

  • Risoluzione incrementale 2048 SIN/COS
  • Risoluzione absoluta 1 SIN/COS a 360°
  • Protezione IP65 secondo DIN EN 60529
  • Diametro esterno 58 mm
  • Albero conico 1:10
  • Cavo di collegamento (disponibile qualsiasi unghezza di cavo)
