SERIE E58 HM SSI

  1. Home
  2. Encoder assoluti multigiro
  3. SSI
  4. SERIE E58 HM SSI

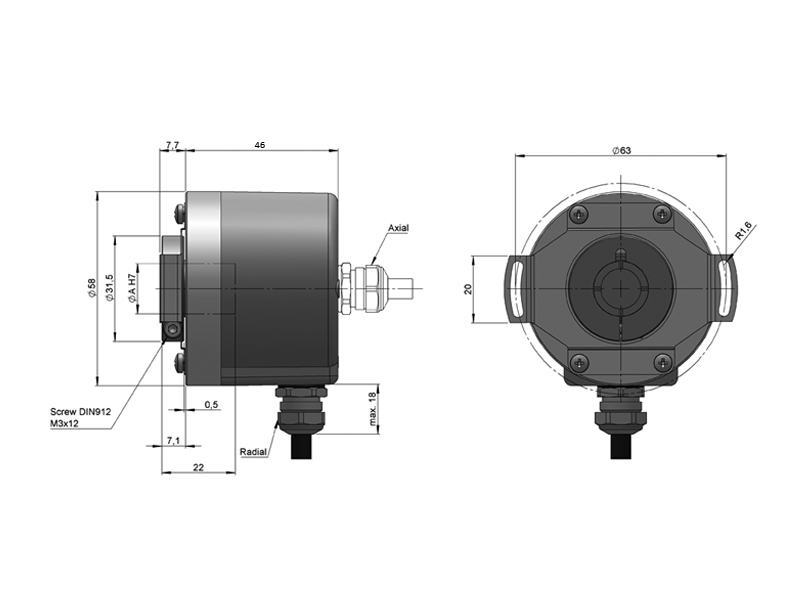

  • Planol E58 HM

BLIND HOLLOW SHAFT ABSOLUTE MULTITURN ENCODER

  • Singleturn resolution up to 13 bits
  • Multiturn resolution up to 24 bits
  • Magnetic technology
  • External diameter 58 mm
  • Blind hollow shaft Ø 8, 10, 12, 14 and 15 mm
  • Protection class IP65 according to DIN EN 60529
  • Connection by cable (other cable length available) or industrial connector M23
