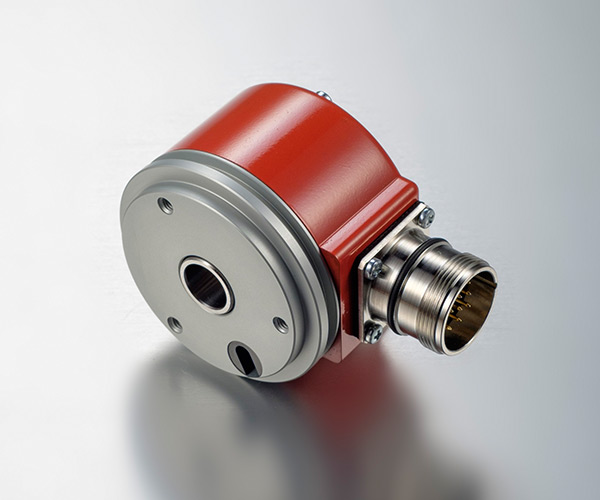

ENCODER INCREMENTALE AD ALBERO SEMICAVO PER APPLICAZIONI INDUSTRIALI

  • Disponibile qualsiasi numero di impulsi per giro, da 1 a 50.000
  • Facile da installare, due opzioni meccaniche, clamp o prigionero di fissaggio
  • Diametro esterno 58 mm
  • Albero semicavo fino a 14 mm
  • Protezione IP65 secondo DIN EN 60529
  • Cavo di collegamento (disponibile qualsiasi lunghezza di cavo) o connettore industriale
  • Connettore femmina inclusi
