SINGLETURN ABSOLUT- MINIATUR- DREHGEBER MIT VOLLWELLE

  • Analogausgang
  • Auflösung bis 12 Bit

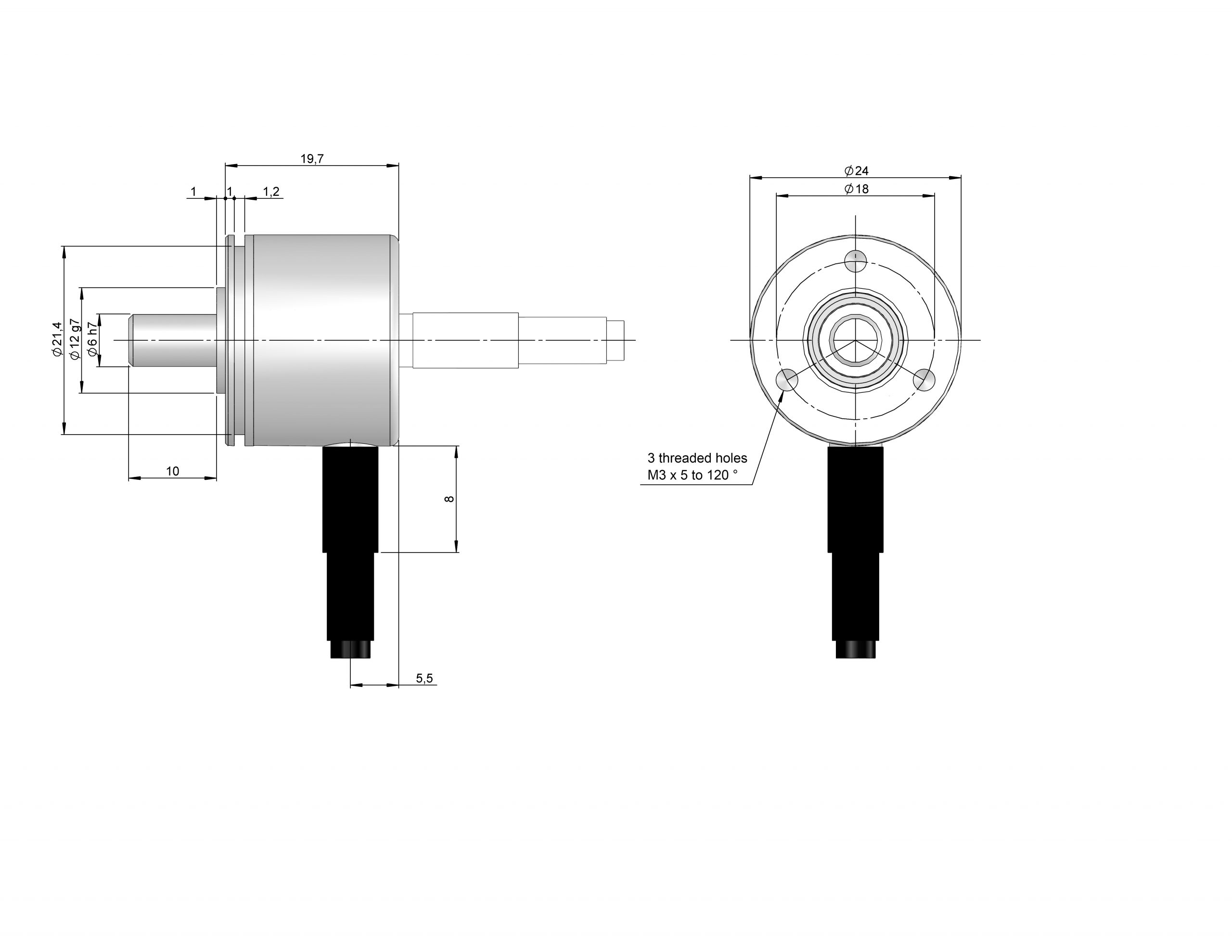

  • Baugröße 24 mm
  • Vollwelle Ø 4 oder 6 mm
  • Schutzart IP64 gemäß DIN EN 60529
  • Kabelanschluss (verschiedene Kabellängen verfügbar)
Chiedere ad un esperto

    Il nostro team di esperti risponderà alle vostre domande nel più breve tempo possibile.

    Nome*

    E-mail*

    Telefono

    Azienda

    Messaggio

    Iscriviti alla nostra newsletter?

    Ho letto ed accettato Condizioni.*

    HOHNER AUTOMATION, S.L. ti informa che i dati personali che fornisci compilando questo modulo saranno trattati allo scopo di inviarti le informazioni richieste. La legittimazione del trattamento viene effettuata attraverso il consenso dell'interessato. Il mancato inserimento dei tuoi dati personali renderà impossibile soddisfare la tua richiesta. È possibile esercitare i diritti di accesso, rettifica, cancellazione e cancellazione dei dati personali contattando info@encoderhohner.com o per posta a HOHNER AUTOMATION, S.L., P.I. Cal Batlle - C/ Dolors Bassa, 3, 17400 - Breda (Girona) Spagna.n.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Name*

        E-mail*

        Phone

        Company

        Country

        Message

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        TECHNISCHE EIGENSCHAFTEN
        Materialien Abdeckung: Aluminium
        Gehäuse: Aluminium
        Welle: Edelstahl
        Lager Kugellager
        Lagerlebensdauer 1×1010 Umdrehungen
        Durchmesser Vollwelle 4 oder 6 mm
        Mechanisch zulässige maximale Drehzahl 6000 U/min-1
        Schutzart gemäß DIN EN 60529 IP64
        Trägheitsmoment des Rotors 2 gcm2
        Anlaufmoment bei 20°C (68°F) ≤ 0,01 Nm
        Zulässige Wellebelastung, axial 10 N
        Zulässige Wellebelastung, radial 10 N
        Gewicht ca. 0,06 Kg
        Betriebstemperatur -40°C bis +85°C
        Vibration gemäß DIN EN 60068-2-6 100 m/s² (10Hz…2000Hz)
        Schock gemäß DIN EN 60068-2-27 1000 m/s² (6ms)
        Anschlüsse 2-Meter-Kabel (andere Kabellängen oder fliegender Gegenstecker auf Anfrage)
        ELEKTRISCHE DATEN
        Schnittstelle Analogausgang
        Ausgang Elektronisch 0..20mA , 4..20mA, 0..5V, 0..10V
        Versorgungsspannung (VCC) 12-18V, 20-28V, 15-30V
        Stromaufnahme ≤ 30 mA
        Auflösung Bis 12 Bit
        Range 180° und 360° elektrisch (*)
        Kurzschlußschutz Ja
        Verpolungsschutz Ja

        (*) Messbereich werkseitig einstellbar von 18° bis 360°.
