SERIE 58 Sin/Cos

  1. Home
  2. Applications
  3. Incremental Lift Technology
  4. SERIE 58 Sin/Cos
3D

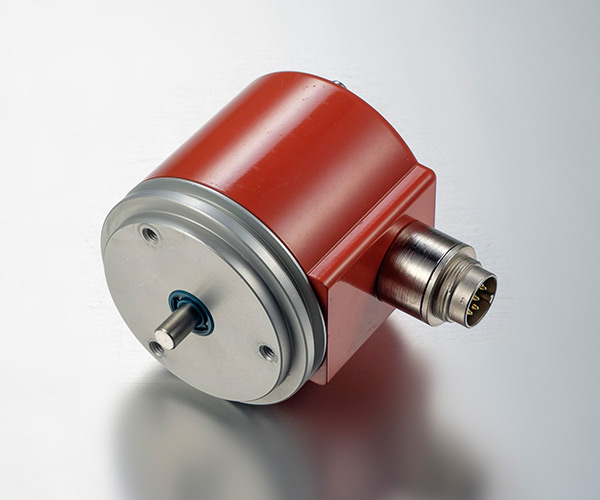

ENCODER INCREMENTALE AD ALBERO SPORGENTE PER APPLICAZIONI INDUSTRIALI

  • Disponibile 1024, 2048 e 2500 impulsi
  • Diametro esterno 58 mm
  • Albero da 6 mm
  • Protezione IP65 según DIN EN 60529
  • Fissaggio per flangia syncro
  • Cavo di collegamento (disponibile qualsiasi lunghezza di cavo) o connettore industriale
  • Connettore femmina inclusi
Chiedere ad un esperto

    Il nostro team di esperti risponderà alle vostre domande nel più breve tempo possibile.

    Nome*

    E-mail*

    Telefono

    Azienda

    Messaggio

    Iscriviti alla nostra newsletter?

    Ho letto ed accettato Condizioni.*

    HOHNER AUTOMATION, S.L. ti informa che i dati personali che fornisci compilando questo modulo saranno trattati allo scopo di inviarti le informazioni richieste. La legittimazione del trattamento viene effettuata attraverso il consenso dell'interessato. Il mancato inserimento dei tuoi dati personali renderà impossibile soddisfare la tua richiesta. È possibile esercitare i diritti di accesso, rettifica, cancellazione e cancellazione dei dati personali contattando info@encoderhohner.com o per posta a HOHNER AUTOMATION, S.L., P.I. Cal Batlle - C/ Dolors Bassa, 3, 17400 - Breda (Girona) Spagna.n.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Plaease enter your email to download product 3D File.

        E-mail

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        If you need 3D step-file of your reference contact us and you will receive it within one working day.

          Name*

          E-mail*

          Phone

          Company

          Country

          Message

          HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
          protection in our Privacy Policy.

          I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

          We would like you to give us your consent to:

          Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

          Fields with a * are required.

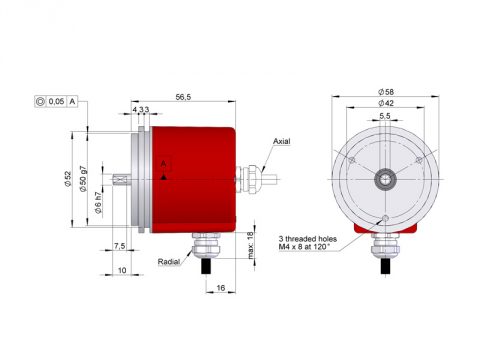

          MECHANICAL SPECIFICATIONS
          Materials Cover. Aluminium
          Housing: Aluminium
          Shaft: Stainless Steel
          Bearings Ballraces
          Bearings lifetime 1×1010 rev.
          Maximum number of revolutions permitted mechanically 6000 rpm
          Protection against dust and splashes according to DIN EN 60529 IP65
          Rotor inertia moment 30 gcm2
          Starting torque at 20ºC (68ºF) ≤ 0,02 Nm
          Maximum load permitted on axial shaft 40 N
          Maximum load permitted on radial shaft 60 N
          Weight aprox. 0,5 Kg
          Operating temperature range -20ºC a +80ºC
          Vibration according to DIN EN 60068-2-6 100 m/s2 (10Hz…2000Hz)
          Shock 1000 m/s2 (6ms)
          Number of pulses per turn 1024, 2048 and 2500 pulses
          Axial or radial connection 2 meters cable or industrial connector M12, M23 (other cable lenghts available on order)
          Female connector not included
          OUTPUT SIGNALS
          OUTPUT CIRCUIT Sine-wave
          Power supply 5 VDC ±10%
          Output voltage 5 VDC
          Consumption Tipical: 40 mA
          Max: 90 mA
          Lenght of cable allowed 50 m
          Signal type SIN/COS, 1Vpp
          Output signal level 0.6 to 1.2 Vpp
          Signal offset 2.5 VDC
          Reference 0.2 to 1 VDC
          Frequency 200 kHz
          Protection polarity inversion Not permanent
          Cosine leads (90° electric) Sine, view from the shaft, shaft rotating clockwise
