  • S100 SERIE

CODEUR INCRÉMENTAL POUR APPLICATIONS INDUSTRIELLES EXTRÊMES

  • Résolution jusqu’à 5.000 impulsions par tour
  • Diamètre du Boitier 100 mm
  • Axe creux de Ø 12 à 16 mm
  • Roulements hybrides pour une durée de vie prolongée
  • Isolation de l’axe jusqu’à 2,5 kV
  • Classe de protection IP66 selon DIN EN 60529
  • Connexion par boîte à bornes avec bornes à ressort débrochables, pivatant sur 360°
  • Double sortie disponible
Vous sollicitez un expert

    Notre équipe d'experts répondra à vos questions techniques, produit ou applications dès que possible.

    Nom*

    Votre email*

    Votre téléphone

    Votre entreprise

    Votre message

    HOHNER AUTOMATION S.L. en tant que responsable du traitement des données, traitera vos données dans le but de répondre à votre question ou demande. Vous pouvez accéder, modifier et effacer vos données, ainsi qu'exercer d'autres droits en consultant les informations complémentaires détaillées sur la protection des données dans notre Politique de Confidentialité..

    J'ai lu et accepté les conditions contenues dans la politique de confidentialité sur le traitement de mes données pour gérer ma requête ou ma demande.

    Nous aimerions que vous nous donniez votre consentement pour:

    Vous envoyer des informations commerciales sur les produits, services et nouvelles fonctionnalités de HOHNER AUTOMATION S.L.

    Les champs marqués d'une * sont obligatoires.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Plaease enter your email to download product 3D File.

        E-mail

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        If you need 3D step-file of your reference contact us and you will receive it within one working day.

          Name*

          E-mail*

          Phone

          Company

          Country

          Message

          HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
          protection in our Privacy Policy.

          I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

          We would like you to give us your consent to:

          Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

          Fields with a * are required.

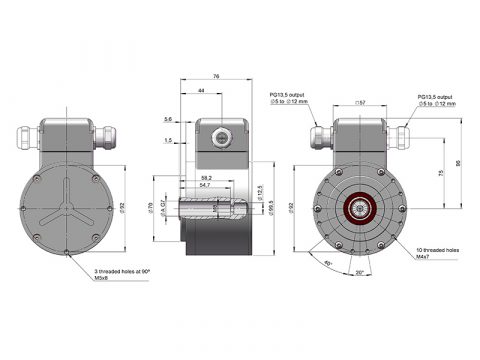

          MECHANICAL SPECIFICATIONS
          Materials Housing: Anodized aluminium
          Shaft: Stainless Steel
          Bearings Dual set of hybrid bearings with ceramic balls
          Bearings lifetime 1×1010 rev.
          Housing fixing Torque arm M6
          Permitted misalignment ±0,05 mm radial
          Shaft fixing Screw M5 or M6
          Hollow shaft diameter 12, 16 mm
          Shaft insulation 2,5 kV
          Maximum number of revolutions permitted mechanically 6000 rpm
          Protection against dust and splashes according to DIN EN 60529 IP66
          Rotor inertia moment ≈ 500 gcm2
          Starting torque at 20°C (68°F) ≤ 0,06 Nm
          Maximum load permitted on axial shaft ≤ 400 N
          Maximum load permitted on radial shaft ≤ 500 N
          Weight aprox. 1,7 Kg
          Operating temperature range -20°C a +80°C – Standard
          -40°C a +80°C – Special Customer YT00
          -20°C a +100°C – Special Customer YT01
          Vibration according to DIN EN 60068-2-6 300 m/s2 (10Hz…2000Hz)
          Shock according to DIN EN 60068-2-27 2500 m/s2 (6ms)
          Maximum pulses per turn 5.000
          Radial connection Terminal box, cable or M12/M23 connector

          Accessories

          Roues pour mesurer

          Cloches d’accouplement

          Pré-câbleage

          Pagu-flex

          Union

          Oldham-flex-clamp

          Équerres

          Poly-flex

          Cloches d’accouplement

          Lami-flex

          Spring-flex

          Systèmes anti-rotations

          Cross-flex

          Bellow-flex

          Connecteurs

          Alu-flex

          SKU: 100H-12111-5000 Categories: , , , , , , , ,
